Hilti szczotki do młota TE 76-ATC
Hilti - szczotki - nowe
Nr katalogowy : 206240
Zastosowanie : TE76ATC

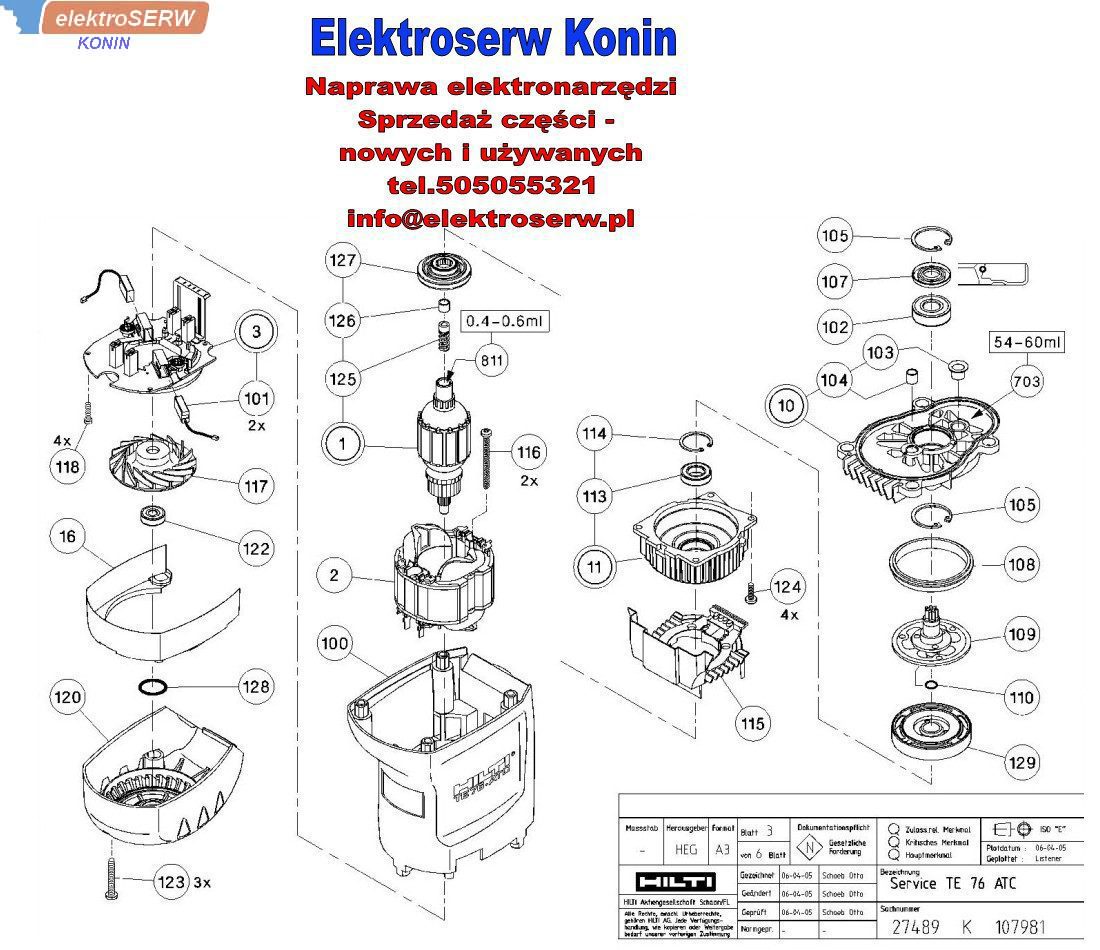

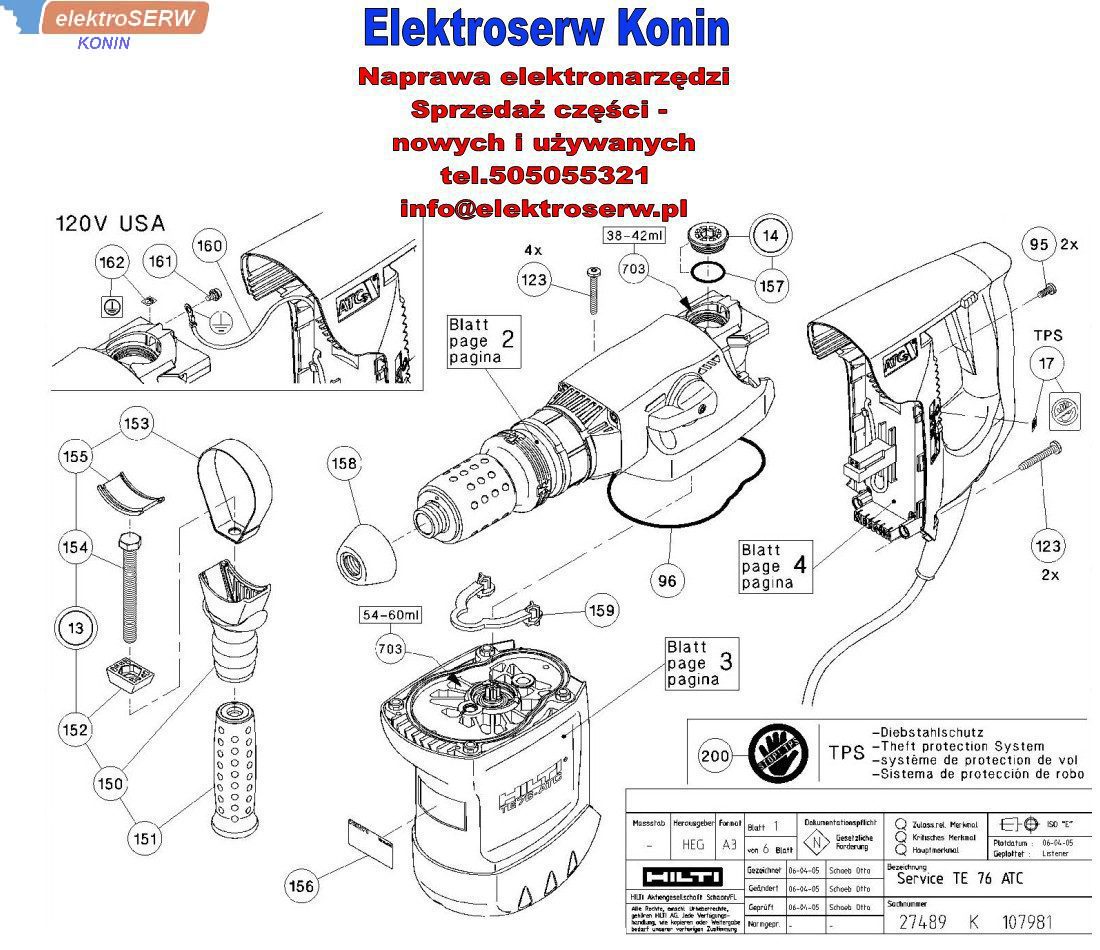

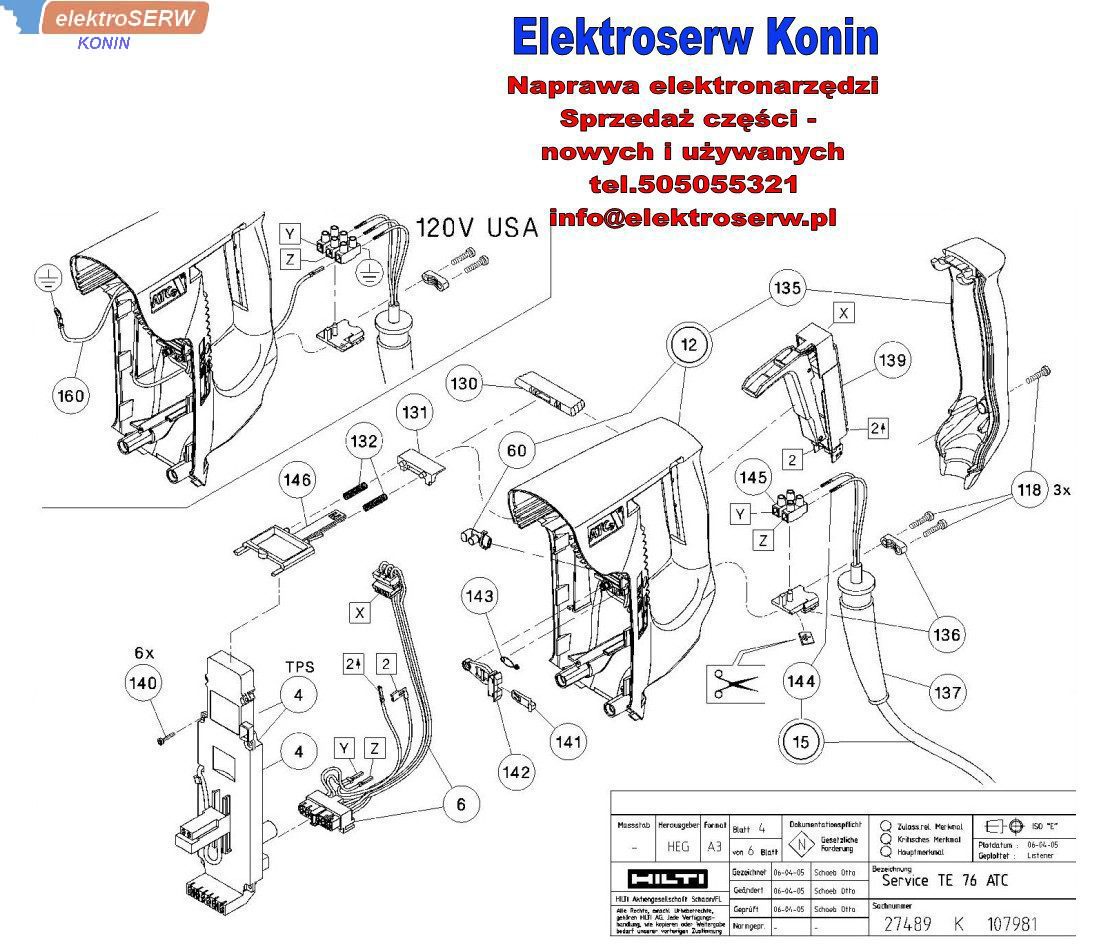

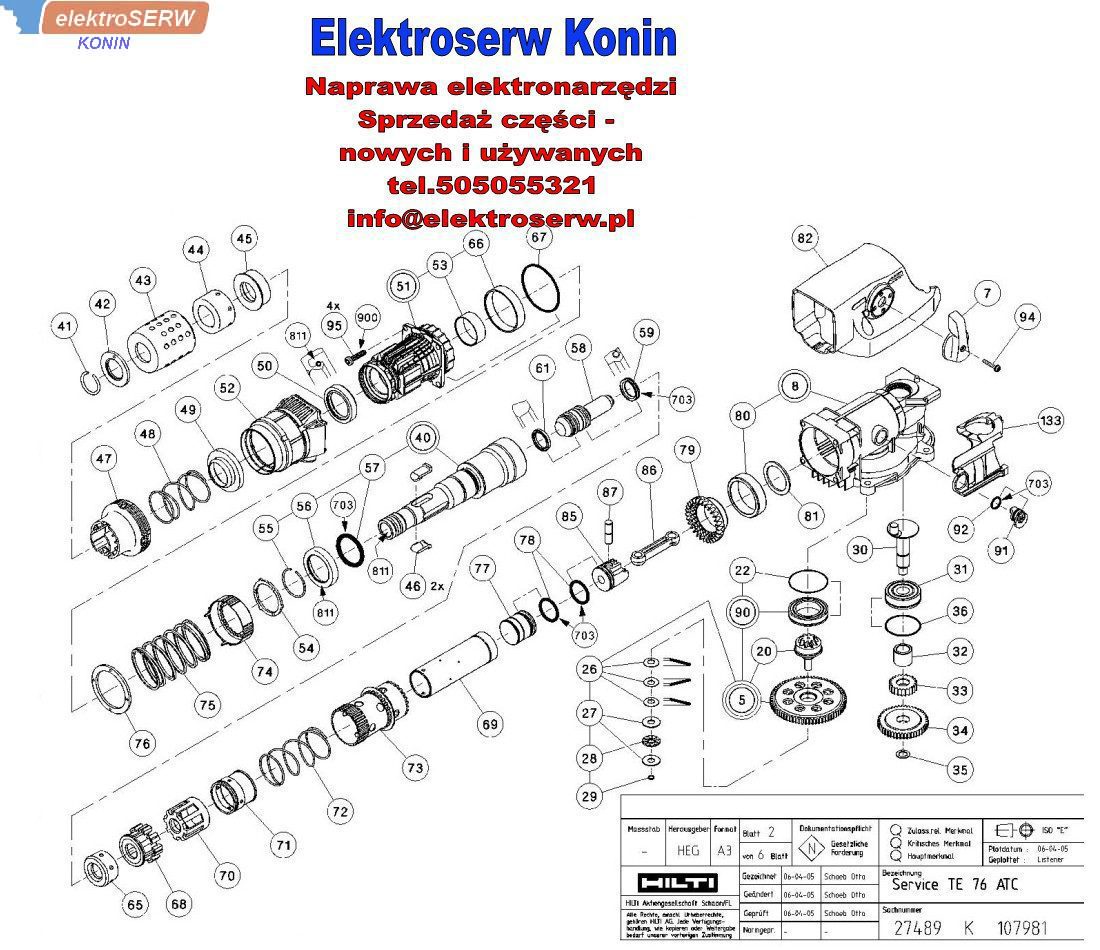

Pozycja na schemacie nr 11
Spis części zamiennych do młotowiertarki
TE 76-ATC 330339
Przy zapytaniu o dostępność i cenę prosimy podać pozycję
na schemacie lub nr katalogowy części.
| Pozycja na schemacie | Nr katalogowy | Nazwa Części |
| 1 | Rotor / wirnik / anker | |
| 2 | Stator / stojan / Pole | |
| 3 | Brush holder / szczotkotrzymacz | |
| 5 | 330466 | Safety clutch B assy |
| 6 | 366316 | Electric plug BAUSATZ assy |
| 7 | 330194 | Setting lever assy |
| 8 | 330435 | Gear housing assy / obudowa przekładni |
| 10 | 330523 | Bearing plate assy |
| 11 | 330502 | Bearing plate 2 assy |
| 12 | 330522 | Grip unit |
| 13 | 330083 | Side handle assy |
| 14 | 234236 | Screw plug assy |
| 15 | 233636 | Supply cord USA/CDN |
| 16 | 330513 | Cover |
| 20 | 330482 | Bevel pinion assy |
| 22 | 330479 | O-ring 45X1 N-NBR70 |
| 26 | 330275 | Disc spring 18X8,2X0,5 |
| 27 | 206122 | Washer 8X21X1 |
| 28 | 206112 | Needle bearing |
| 29 | 330325 | O-ring 5X1 |
| 30 | 330148 | Eccentric |
| 31 | 330500 | Ball bearing 15x42x13 |
| 32 | 330469 | Spacing sleeve |
| 33 | 330149 | Toothed gear Z=23 |
| 34 | 330150 | Toothed gear Z=46 |
| 35 | 330106 | Shim ring 10X16X1 |
| 36 | 218332 | O-ring 37x1,5 N-NBR70 |
| 40 | 330456 | Chuck assy |
| 41 | 330170 | Retaining ring |
| 42 | 330051 | Washer |
| 43 | 330050 | Cover cap |
| 44 | 330114 | Absorber |
| 45 | 330048 | Ring |
| 46 | 330046 | Pawl |
| 47 | 330047 | Cap |
| 48 | 330080 | Compression spring 2X40X49,3 |
| 49 | 330100 | Spring guide |
| 50 | 330119 | Rotary shaft seal 34X47X9 |
| 51 | 330441 | Flange assy |
| 52 | 330071 | Grip section |
| 53 | 330137 | Bearing bushing |
| 54 | 330079 | Washer |
| 55 | 330120 | Retaining ring |
| 56 | 345233 | Cage |
| 57 | 330115 | O-ring 34X5,5 |
| 58 | 330093 | Ram |
| 59 | 330116 | Sealing ring 20,55X28X4,8 |
| 60 | 330508 | Lightguide |
| 61 | 330488 | Sealing ring 28X21,2X4,5 |
| 65 | 330111 | Absorber |
| 66 | 330138 | Bearing bushing |
| 67 | 233560 | O-ring 58X2,5 |
| 68 | 330139 | Stop |
| 69 | 330078 | Guide tube |
| 70 | 330140 | Shifting yoke |
| 71 | 330109 | Setting sleeve |
| 72 | 330082 | Compression spring 2X1,7/40,7X69,5 |
| 73 | 330057 | Coupling |
| 74 | 330394 | Coupling ring |
| 75 | 330506 | Compression spring 55,5X76,5 |
| 76 | 330097 | Washer |
| 77 | 330092 | Striker piston |
| 78 | 17955 | O-ring 24,99X3,53 |
| 79 | 330037 | Bevel gear |
| 80 | 206090 | Bearing bushing |
| 81 | 330096 | Washer |
| 82 | 330070 | Casing |
| 85 | 345151 | Drive piston |
| 86 | 330395 | Conrod |
| 87 | 26010 | Piston pin |
| 90 | 330472 | Ball bearing 30X47X9 |
| 91 | 330586 | Eccentric |
| 92 | 330091 | O-ring 12X2 |
| 94 | 330107 | Torx-soc re scr 4X24 |
| 95 | 233637 | Torx-soc ov screw M6X25 10.9 |
| 96 | 330161 | Seal |
| 100 | 330175 | Motor housing TE 76-ATC |
| 101 | 206240 | Carbon brush 7x12,5x26 100V-120V AO |
| 102 | 234199 | Ball bearing 15X35X11 |
| 103 | 330334 | Bearing bushing |
| 104 | 76583 | Bearing bushing 10X8X8 |
| 105 | 51090 | Circlip 35X1,5 |
| 107 | 330258 | Rotary shaft seal 14,8X35X4 |
| 108 | 330249 | Hold-down |
| 109 | 330503 | Pinion assy |
| 110 | 330490 | O-ring 7,5X1,5 |
| 113 | 330199 | Ball bearing |
| 114 | 240407 | Circlip 28X1.2 |
| 115 | 330010 | Air deflector |
| 116 | 206035 | Plastite screw 45 5X60 |
| 117 | 330326 | Cooling fan |
| 118 | 207960 | Torx-soc re scr 4X18 |
| 120 | 330015 | Housing endcap |
| 122 | 250740 | Ball bearing |
| 123 | 330445 | Plastite screw 45 6X40 |
| 124 | 202188 | Torx-soc ov screw M5X12 |
| 125 | 330309 | Pressure piece assy |
| 126 | 330262 | Bushing |
| 127 | 330011 | Insulating washer / pierścień magnetyczny |
| 128 | 206145 | O-ring 21,3X2,4 |
| 129 | 330307 | Drive ring |
| 130 | 330407 | Switch |
| 131 | 330405 | Pressure piece |
| 132 | 330406 | Compression spring 0,5X5X32,9 |
| 133 | 330408 | Setting rod |
| 135 | 330018 | Grip cover |
| 136 | 330177 | Clamp |
| 137 | 330179 | Protective sleeve DM10 |
| 139 | 330041 | Switch POTI |
| 140 | 202264 | Torx-soc pl scr 45 3X12 |
| 141 | 330248 | Lock button |
| 142 | 202182 | Setting lever assy |
| 143 | 76875 | Spring |
| 144 | 72417 | Conductor end |
| 145 | 277212 | Terminal block 500/3 35 DS |
| 146 | 330404 | Slider |
| 150 | 330084 | Side handle upr. |
| 151 | 330086 | Side handle lower |
| 152 | 330088 | Pressure piece |
| 153 | 330089 | Clamping band |
| 154 | 330090 | Hexagon screw M10X100 |
| 155 | 330492 | Segment |
| 156 | 330359 | Rating plate TE 76-ATC 120V |
| 157 | 74157 | O-ring 24X2 |
| 158 | 330166 | Cap |
| 159 | 330314 | Magnet holder assy |
| 160 | 233624 | Flexible conductor assy |
| 161 | 201495 | Torx-soc tapt scr M3,5X5,5 |
| 703 | 30215 | Oil Turmopol 20HD 1L |
| 811 | 203086 | Grease 50 ML |
| 900 | 59299 | Adhesive LOCTITE 222 250CCM |
