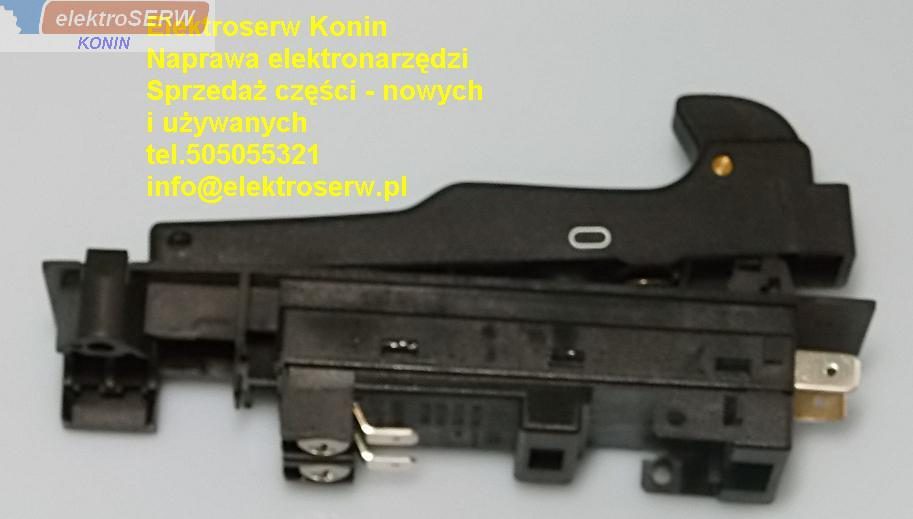

Makita - włącznik - nowy oryginalny.

Nr katalogowy: 650102-8

Zastosowanie : STOSOWANY W SZLIFIERKACH KĄTOWYCH Makita

GA7020R GA7030R GA7040R GA7050R GA9020R GA9030R GA9040R GA9050R



Dostępny również używany za 27 zł

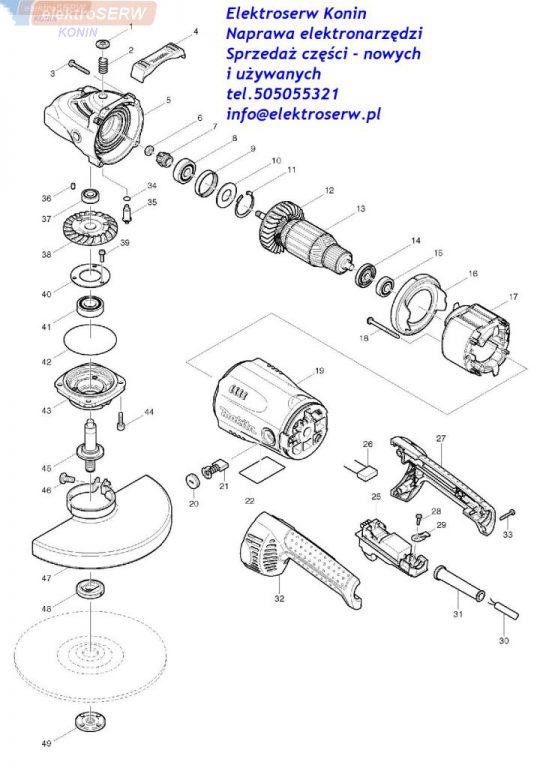

NO. GA9020



ITEM PART NO. DESCRIPTION QTY NOTE



001 419133-4 PIN CAP 1



002 233292-8 COMPRESSION SPRING 12 1



003 266373-3 TAPPING SCREW 5X35 4



004 419144-9 BUMPER 1



005 154685-5 GEAR HOUSING COMPLETE 1



006 252194-9 HEX. NUT M8 1



007 227490-4 SPIRAL BEVEL GEAR 12 1



008 211132-0 BALL BEARING 6301DDW 1



009 262085-6 RUBBER RING 38 1



010 267299-2 FLAT WASHER 20 1



011 962211-4 RETAINING RING R-42 1



012 240081-4 FAN 80 1



013 517794-5 ARMATURE ASS'Y 240V 1



INC. 12,14,15



014 681630-2 INSULATION WASHER 1



015 210075-3 BALL BEARING 6200DDW 1



016 419135-0 BAFFLE PLATE 1



017 526179-4 FIELD ASS'Y 240V 1



018 266329-6 TAPPING SCREW 5X60 2



019 154671-6 MOTOR HOUSING COMPLETE 1



020 643700-5 BRUSH HOLDER CAP 7-18 2



021 191957-7 A.C. CARBON BRUSH CB-204 1



022 861762-3 GA9020 NAME PLATE 1



025 650101-0 SWITCH TG08-1100-011 1



027 188059-8 HANDLE SET 1



INC. 32



028 266385-6 TAPPING SCREW 4X14 1



029 687169-3 STRAIN RELIEF 1



030 692607-2 POWER SUPPLY CORD 1.5-2-2.5 1



031 682560-0 CORD GUARD 10 1



032 188059-8 HANDLE SET 1



INC. 27



033 266374-1 TAPPING SCREW 4X25 4



034 213062-1 O RING 9 1



035 256491-5 SHOULDER PIN 5 1



036 263002-9 RUBBER PIN 4 1



037 210067-2 BALL BEARING 6000ZZ 1



038 227491-2 SPIRAL BEVEL GEAR 53 A 1



039 265120-9 PAN HEAD SCREW M5X16 3



040 285724-1 BEARING RETAINER 50 1



041 211285-5 BALL BEARING 6203DDW 1



042 213760-7 O RING 78 1



043 317988-0 BEARING BOX 1



044 265541-5 HEX. SOCKET HEAD BOLT M6X22 4



045 158206-5 SPINDLE COMPLETE 1



046 265158-4 +PAN HEAD SCREW M8X25 1



047 154672-4 WHEEL COVER 230 COMPLETE 1



INC. 46



048 224415-9 INNER FLANGE 42 1



049 224543-0 LOCK NUT 14-45 1



050 233946-7 RING SPRING 15 1



051 819357-6 CLEAR LABEL 1



A01 152539-0 GRIP 36 COMPLETE 1



A02 782407-9 LOCK NUT WRENCH 35 1
