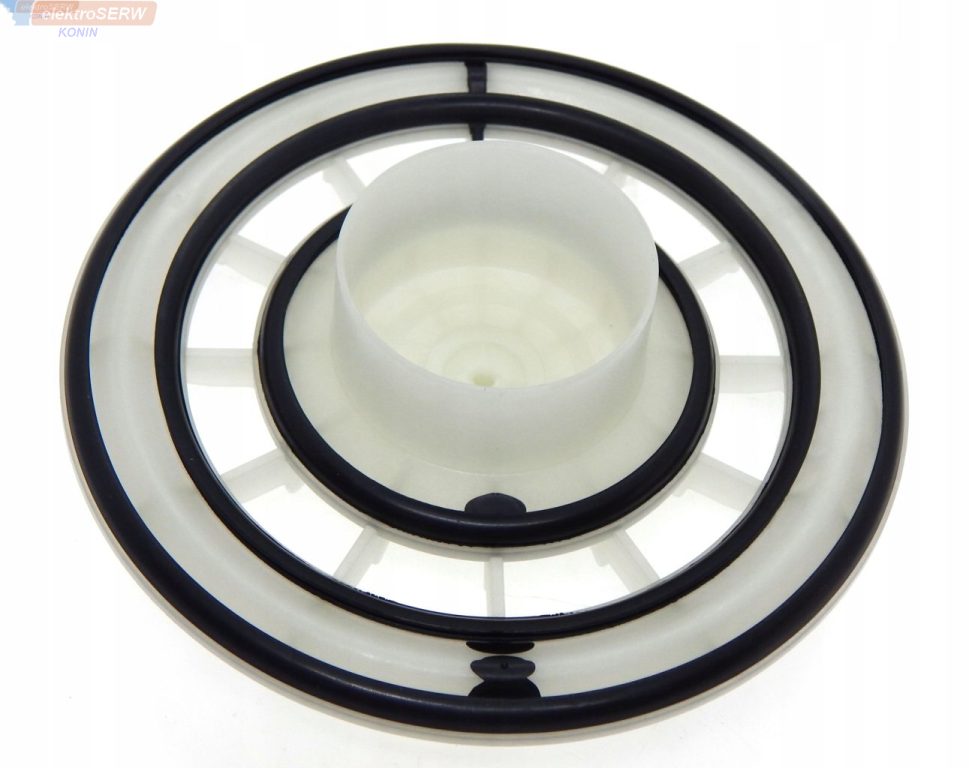

Talerz zaworu do odkurzacza HILTI VC20-U

( zawór kpl / Valve Plat e/ Ventilteller )

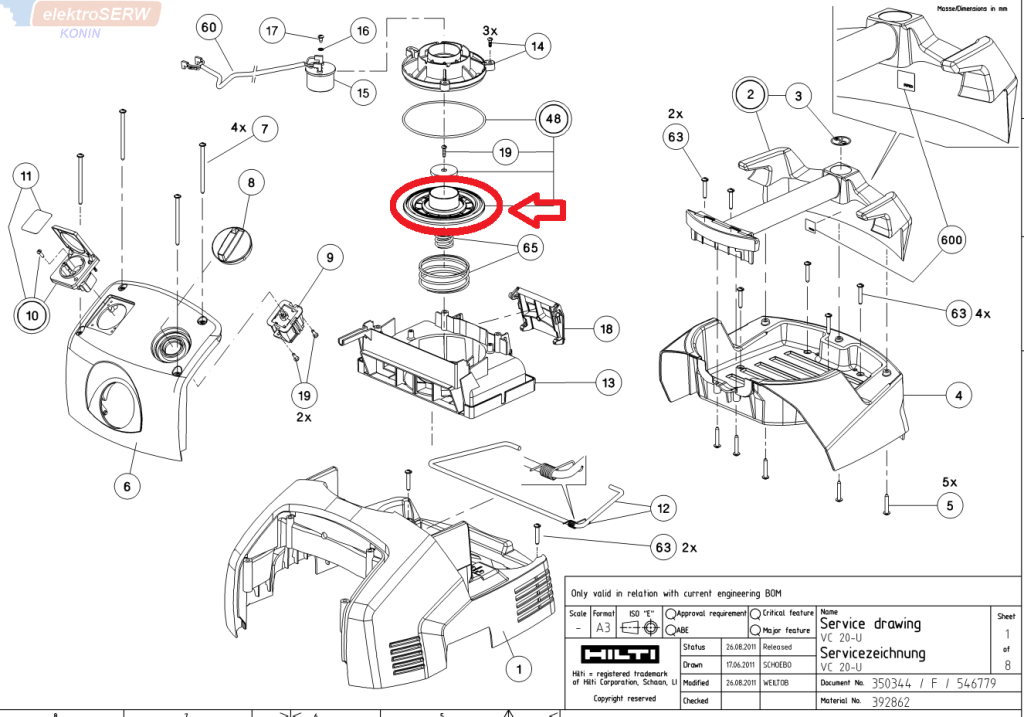

VC20-U Lista części

1 365339 1 PC Cover hood VC 20-U

2 363916 1 PC Grip assy

3 363924 1 PC Adhesive label Kranhaken

4 363917 1 PC Lid

5 363925 9 PC Screw 5x30

6 363915 1 PC Front plate

7 363926 6 PC Screw 5x80

8 363927 1 PC Rotary knob outside

9 363928 1 PC Switch inside

10 363929 1 PC Plug socket EU assy

11 363934 1 PC Adhesive label 2400W

12 363937 1 PC Retaining clip assy

13 2007697 1 PC Housing

14 363939 1 PC Magnet holder assy

15 363940 1 PC Magnet 230V

16 363943 1 PC Serrated lock washer 4,3

17 363944 1 PC Screw M4x8

18 363945 3 PC Plug cap

19 364012 3 PC Screw 4x16

20 363947 1 PC Extraction connector assy

21 363948 1 PC Seal 10

22 363949 1 PC Baseplate assy

23 363950 1 PC Motor housing end cap assy

24 363951 1 PC Motor 220V-240V assy

25 363954 1 PC Carbon brush 220-240V

26 363955 1 PC Motor housing end cap rear

27 363956 1 PC Seal

28 365347 1 PC Rating plate VC 20-U 230V EU

29 363957 2 PC Sensor assy

30 363958 1 PC Insulating connector

31 363959 2 PC Insulating connector assy

32 203862 1 PC Filter element VC 20/40

33 363996 1 PC Filter cartridge kit

34 363961 1 PC Insulating connector assy

35 365341 1 PC Container VC 20-U/UM assy

36 365345 1 PC Holder VC 20-U/UM

37 365342 2 PC Wheel 75

43 363975 1 PC Axle

44 365343 2 PC Wheel 150

45 363977 2 PC Retaining washer

46 365344 2 PC Cover cap

47 367979 2 PC Screw 4x20

48 2008089 1 PC Valve cap kit

50 363978 1 PC Electronics 220-240V

51 363981 2 PC Screw 4x22

52 363982 1 PC Clamping plate

53 363983 1 PC Supply cord 230V EU

55 363990 2 PC Flexible conductor

56 363991 2 PC Flexible conductor 200

57 363992 2 PC Flexible conductor 240

58 363993 2 PC Flexible conductor

59 363994 1 PC Grounding bridge 190

60 363995 1 PC Flexible conductor

61 364253 1 PC Flexible conductor 210

63 365132 8 PC Screw 5x35

64 392839 1 PC Edge protection

65 2007698 1,000 PC Spring kit

80 203865 1 PC Suction hose 27x3,5m AS assy

82 203873 1 PC Floor nozzle VC 20/40/60

83 203877 1 PC Rubber lip VC 20/40/60 set

84 203876 1 PC Brush VC 20/40/60 set

85 203874 1 PC Suction tube VC 20/40/60 assy

86 203872 1 PC Joint nozzle VC 20/40/60

87 203875 1 PC Bend VC 20/40/60 assy

88 325612 1 PC Coupling 27

600 430817 1 PC Label RFID
