* Spis części do DLM532



pozycja artykułu, nr katalogowy, opis produktu, ilość:

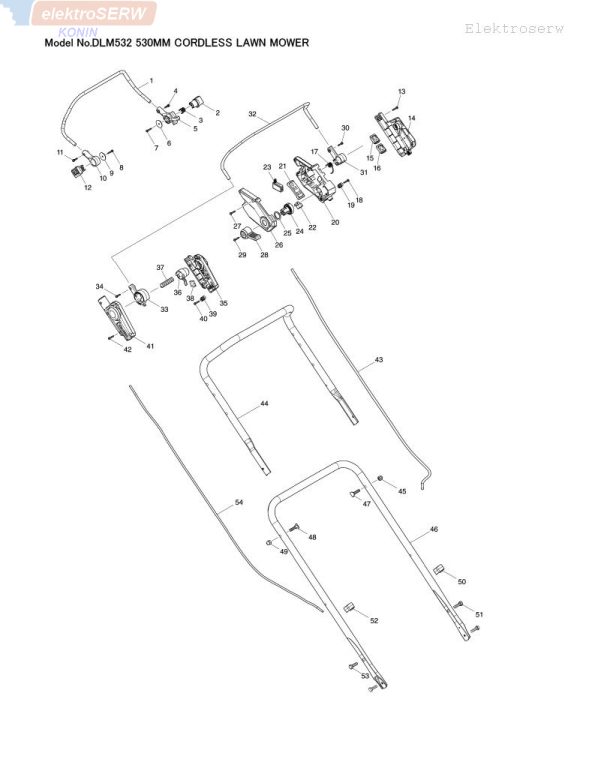

1; 327425-6  DRIVING LEVER;  1

2; 459859-6  DRIVING LEVER HOLDER;  1

3; 232566-4  TORSION SPRING 12;  1

4; 911138-5  P.H.SCREW M4X20 WITH WR;  1

5; 459864-3  DRIVING LEVER SUPPORT L;  1

6; 267136-0  FLAT WASHER 5;  1

7; 266424-2  TAPPING SCREW 4X20;  1

8; 266424-2  TAPPING SCREW 4X20;  1

9; 267136-0  FLAT WASHER 5;  1

10; 459858-8  DRIVING LEVER SUPPORT R;  1

11; 911138-5  P.H.SCREW M4X20 WITH WR;  1

12; 459859-6  DRIVING LEVER HOLDER;  1

13; 266424-2  TAPPING SCREW 4X20;  6

14; 183N90-3  SWITCH BOX SET;  1

15; 140F09-7  SWITCH CIRCUIT COMPLETE;  1

15; 810D46-0  SWITCH LABEL;  1

16; 140F10-2  SWITCH CIRCUIT COMPLETE;  1

16; 818A74-1  SWITCH LABEL;  1

17; 232575-3  TORSION SPRING 12;  1

18; 266424-2  TAPPING SCREW 4X20;  2

19; 687124-5  STRAIN RELIEF;  1

20; 459860-1  SWITCH BOX;  1

21; 620C48-0  INDICATION CIRCUIT COMPLETE;  1

21; 8007C8-5  INDICATION LABEL;  1

22; 620415-1  SUB CONTROLLER;  1

23; 651083-9  SWITCH C3XA-1PSPM;  1

24; 459866-9  SPEED LEVER HOLDER;  1

25; 213897-0  O-RING 26;  1

26; 183N90-3  SWITCH BOX SET;  1

27; 266424-2  TAPPING SCREW 4X20;  5

28; 459865-1  SPEED LEVER;  1

29; 266424-2  TAPPING SCREW 4X20;  1

30; 911138-5  P.H.SCREW M4X20 WITH WR;  1

31; 459863-5  SWITCH LEVER SUPPORT L;  1

31; 931102-0  HEX. NUT M4;  1

32; 327424-8  SWITCH LEVER;  1

33; 459856-2  SWITCH LEVER SUPPORT R;  1

33; 931102-0  HEX. NUT M4;  1

34; 911138-5  P.H.SCREW M4X20 WITH WR;  1

35; 183P40-0  LEVER BOX SET;  1

35; 8007C6-9  INDICATION LABEL;  1

36; 459857-0  LOCK OFF BUTTON;  1

37; 231227-3  COMPRESSION SPRING 15;  1

38; 632E26-0  SWITCH UNIT;  1

39; 687124-5  STRAIN RELIEF;  1

40; 266424-2  TAPPING SCREW 4X20;  2

41; 183P40-0  LEVER BOX SET;  1

41; 8007C6-9  INDICATION LABEL;  1

42; 266424-2  TAPPING SCREW 4X20;  6

43; 699143-9  POWER SUPPLY CORD UNIT;  1

44; 327421-4  HANDLE UPPER;  1

45; 252278-3  HEX. CAP NUT M8;  1

46; 327422-2  HANDLE LOWER;  1

47; 265A62-3  FLAT HEAD BOLT M8X38;  1

48; 265A62-3  FLAT HEAD BOLT M8X38;  1

49; 252278-3  HEX. CAP NUT M8;  1

50; 459905-5  CLAMP;  1

51; 921451-3  HEX. BOLT M8X30;  2

52; 459905-5  CLAMP;  1

53; 921451-3  HEX. BOLT M8X30;  2

54; 699142-1  POWER SUPPLY CORD UNIT;  1

55; 127412-3  GRASS CATCHER ASSEMBLY;  1

56; 140S03-7  BATTERY COVER COMPLETE;  1

56; 890380-0  CAUTION LABEL;  1

57; 961018-5  STOP RING E-5;  1

58; 327536-7  ROD 6;  1

59; 643535-4  KEY;  1

60; 266404-8  TAPPING SCREW BIND 3X14;  1

61; 459851-2  SWITCH LEVER;  1

62; 213896-2  O-RING 24;  1

63; 459852-0  LOCK LEVER;  1

64; 231037-8  COMPRESSION SPRING 7;  1

65; 266424-2  TAPPING SCREW 4X20;  7

66; 459847-3  COWLING UPPER;  1

67; 856R09-6  DLM532 NAME PLATE;  1

68; 183N78-3  TERMINAL HOUSING SET;  2

68; 263005-3  RUBBER PIN 6;  8

69; 266424-2  TAPPING SCREW 4X20;  6

70; 856R18-5  DLM532 SERIAL NO. LABEL;  1

71; 644809-6  TERMINAL;  4

72; 266424-2  TAPPING SCREW 4X20;  8

73; 183N78-3  TERMINAL HOUSING SET;  2

73; 263005-3  RUBBER PIN 6;  8

77; 266424-2  TAPPING SCREW 4X20;  2

78; 687124-5  STRAIN RELIEF;  1

79; 687051-6  STRAIN RELIEF;  1

80; 266424-2  TAPPING SCREW 4X20;  2

81; 687124-5  STRAIN RELIEF;  1

82; 687051-6  STRAIN RELIEF;  1

83; 620C45-6  CONTROLLER;  1

84; 266424-2  TAPPING SCREW 4X20;  2

85; 632P74-5  LEAD UNIT;  1

86; 422529-0  SPONGE B;  1

87; 620C47-2  CONTROLLER;  1

88; 422528-2  SPONGE A;  1

89; 651444-3  SWITCH 1703.4703;  1

90; 699145-5  POWER SUPPLY CORD UNIT;  1

91; 266424-2  TAPPING SCREW 4X20;  2

92; 687124-5  STRAIN RELIEF;  1

93; 687051-6  STRAIN RELIEF;  1

94; 911233-1  PAN HEAD SCREW M5X20;  4

95; 459848-1  COWLING LOWER;  1

96; 319869-4  MOTOR HOUSING UPPER;  1

97; 253455-0  WAVE WASHER 19;  1

98; 210141-6  BALL BEARING 6000DDW;  1

99; 519606-8  ROTOR ASS'Y;  1

100; 211387-7  BALL BEARING 6004LLU;  1

101; 265B29-7  TAPPING SCREW PT 2X8;  2

102; 620B88-2  CONTROLLER B;  1

103; 629465-3  STATOR;  1

104; 319870-9  MOTOR HOUSING LOWER;  1

105; 911691-1  PAN HEAD SCREW M5X70;  3

106; 652031-1  PAN HEAD SCREW M3X6;  3

107; 911233-1  PAN HEAD SCREW M5X20;  4

108; 922441-9  HEX. SOCKET HEAD BOLT M8X25;  4

109; 319867-8  MOTOR BRACKET;  1

110; 459853-8  BAFFLE PLATE;  1

111; 911126-2  PAN HEAD SCREW M4X16;  4

112; 240205-2  FAN 170;  1

113; 319868-6  BLADE SUPPORT;  1

114; 266424-2  TAPPING SCREW 4X20;  2

115; 191D52-7  BLADE 530 SET;  1

116; 265A69-9  HEX. BOLT M10X35 WITH WG;  1

117; 127516-1  MULCHING PLUG ASSEMBLY;  1

118; 459884-7  LOCK LEVER;  1

119; 231401-3  COMPRESSION SPRING 7;  1

120; 459885-5  LOCK LEVER SUPPORT;  1

121; 266424-2  TAPPING SCREW 4X20;  2

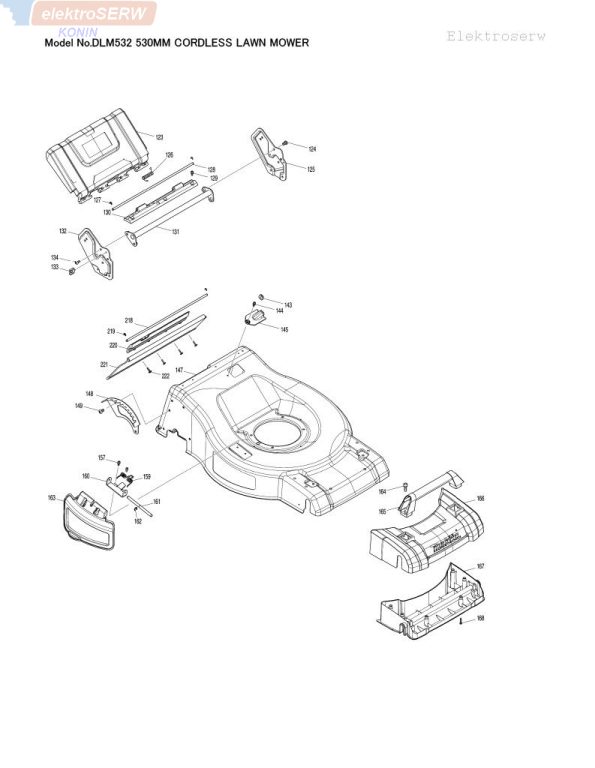

123; 140R96-8  REAR FLAP COMPLETE;  1

123; 8007P8-6  CAUTION LABEL;  1

124; 265B20-5  HEX.SOCKET BUTTON HEAD BOLT M8;  4

125; 347579-3  HANDLE BRACKET L;  1

126; 233597-6  TORSION SPRING 8;  1

127; 961018-5  STOP RING E-5;  2

128; 327418-3  ROD 6;  1

129; 922213-2  H.S.H.BOLT M5X12 WITH WR;  3

130; 459877-4  REAR FLAP HOLDER PLATE;  1

131; 162692-4  REAR GRIP;  1

132; 347578-5  HANDLE BRACKET R;  1

133; 451825-9  CLAMP;  1

134; 265B20-5  HEX.SOCKET BUTTON HEAD BOLT M8;  4

135; 232628-8  TENSION SPRING 16;  1

136; 347580-8  CONNECTING ROD;  1

137; 941151-9  FLAT WASHER 6;  1

138; 252014-7  HEX. LOCK NUT M6-10;  1

139; 267216-2  FLAT WASHER 8;  1

140; 252014-7  HEX. LOCK NUT M6-10;  1

141; 941151-9  FLAT WASHER 6;  1

142; 253762-1  FLAT WASHER 8;  1

143; 422526-6  GROMMET;

144; 922213-2  H.S.H.BOLT M5X12 WITH WR;  1

145; 459880-5  LEAD COVER;  1

146; 683A20-1  POLYOLEFIN TUBE;  1

147; 347559-9  DECK;  1

148; 347582-4  HEIGHT ADJUST PLATE;  1

149; 265B20-5  HEX.SOCKET BUTTON HEAD BOLT M8;  2

150; 922311-2  HEX. SOCKET HEAD BOLT M6X12;  4

151; 313290-9  REAR SHAFT HOLDER COVER;  2

157; 922213-2  H.S.H.BOLT M5X12 WITH WR;  2

159; 232567-2  TORSION SPRING 9;  1

160; 347584-0  SIDE DISCHARGE PLATE;  1

161; 327420-6  ROD 8;  1

162; 961013-5  STOP RING E-7;  1

163; 459886-3  SIDE DISCHARGE COVER;  1

164; 922441-9  HEX. SOCKET HEAD BOLT M8X25;  2

165; 459870-8  FRONT GRIP;  1

166; 459871-6  FRONT COVER;  1

167; 459872-4  DECK UNDER COVER;  1

168; 266424-2  TAPPING SCREW 4X20;  6

169; 265324-3  HEX. FLANGE HEAD BOLT M8X12;  1

170; 211247-3  BALL BEARING 6002DDW;  1

171; 127513-7  REAR WHEEL ASSEMBLY;  1

172; 211247-3  BALL BEARING 6002DDW;  1

173; 226941-4  SPUR GEAR 49;  1

174; 961052-5  RETAINING RING S-12;  1

175; 226940-6  SPUR GEAR 12;  1

176; 347586-6  GEAR HOLDER PLATE;  1

177; 266424-2  TAPPING SCREW 4X20;  2

178; 911213-7  PAN HEAD SCREW M5X12;  2

179; 459867-7  WHEEL CAP;  1

180; 911213-7  PAN HEAD SCREW M5X12;  3

181; 327426-4  REAR SHAFT HOLDER;  1

182; 210163-6  BALL BEARING 6001DDW;  1

183; 162689-3  REAR SHAFT;  1

184; 922311-2  HEX. SOCKET HEAD BOLT M6X12;  2

185; 162694-0  HEIGHT ADJUST LEVER COMPLETE;  1

186; 327426-4  REAR SHAFT HOLDER;  1

186;-1 313369-6  REAR SHAFT HOLDER R;  1

187; 210163-6  BALL BEARING 6001DDW;  1

188; 911213-7  PAN HEAD SCREW M5X12;  3

189; 459867-7  WHEEL CAP;  1

190; 911213-7  PAN HEAD SCREW M5X12;  2

191; 347586-6  GEAR HOLDER PLATE;  1

192; 226941-4  SPUR GEAR 49;  1

193; 226940-6  SPUR GEAR 12;  1

194; 961052-5  RETAINING RING S-12;  1

195; 211247-3  BALL BEARING 6002DDW;  1

196; 127513-7  REAR WHEEL ASSEMBLY;  1

197; 211247-3  BALL BEARING 6002DDW;  1

198; 265324-3  HEX. FLANGE HEAD BOLT M8X12;  1

199; 266388-0  TAPPING SCREW 5X16;  2

200; 347585-8  BRACKET;  1

201; 922311-2  HEX. SOCKET HEAD BOLT M6X12;  1

202; 127510-3  DRIVE UNIT ASSEMBLY;  1

203; 265324-3  HEX. FLANGE HEAD BOLT M8X12;  1

204; 211247-3  BALL BEARING 6002DDW;  1

205; 127514-5  FRONT WHEEL ASSEMBLY;  1

206; 211247-3  BALL BEARING 6002DDW;  1

207; 162688-5  FRONT SHAFT;  1

208; 211247-3  BALL BEARING 6002DDW;  1

209; 127514-5  FRONT WHEEL ASSEMBLY;  1

210; 211247-3  BALL BEARING 6002DDW;  1

211; 265324-3  HEX. FLANGE HEAD BOLT M8X12;  1

212; 341462-6  PLATE;  2

213; 266424-2  TAPPING SCREW 4X20;  4

214; 266424-2  TAPPING SCREW 4X20;  2

224; 961059-1  RETAINING RING (EXT) S-19;  1

A01; 327589-6  ROD 6;  1

A02; 782210-8  SOCKET WRENCH 17;  1

A03; 782212-4  SOCKET WRENCH 13;  1

A04; 459887-1  SIDE DISCHARGE MOUTH;  1
