* Lista części do UR101C - Cordless Brush Cutter / kosa akumulatorowa

pozycja na schemacie, nr katalogowy, opis produktu, ilość:

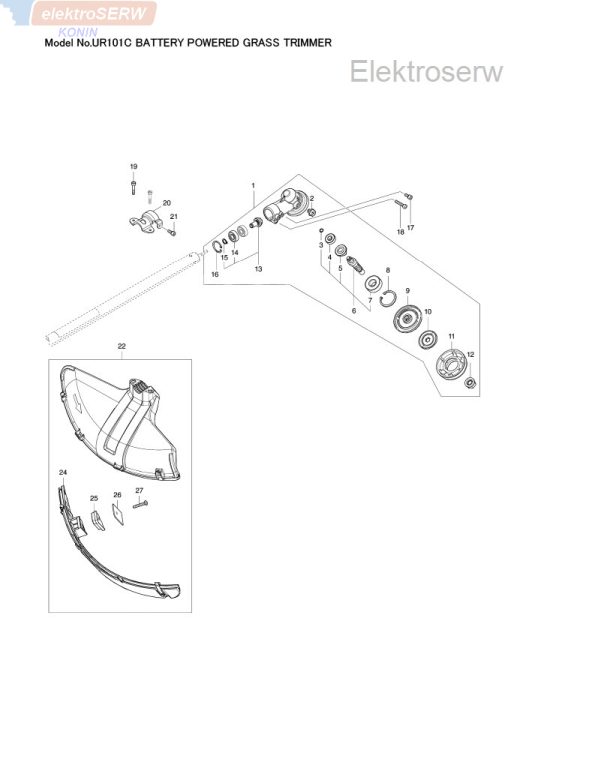

001; 123853-1  GEAR CASE ASSEMBLY;  1

002; 265590-2  +HEX.BOLT M8X10 WITH R;  1

003; 232350-7  RING SPRING 6;  1

004; 210030-5  BALL BEARING 627ZZ;  1

005; 221484-1  SPIRAL BEVEL GEAR 19;  1

006; 136233-2  CUTTER SHAFT ASS'Y;  1

007; 211228-7  BALL BEARING 6202DDW;  1

008; 257432-4  RETAINING RING R-35;  1

009; 144312-2  RECEIVE WASHER COMPLETE;  1

010; 347104-0  CLAMP WASHER;  1

011; 457274-8  CUP US;  1

012; 252236-9  HEX. LOCK NUT M10-17;  1

013; 136235-8  SPIRAL BEVEL GEAR ASS'Y;  1

014; 210049-4  BALL BEARING 609ZZ;  2

015; 257986-1  RETAINING RING (EXT) S-9;  1

016; 257987-9  RETAINING RING (INT)R-24;  1

017; 922216-6  HEX. SOCKET HEAD BOLT M5X14;  1

018; 922242-5  HEX. SOCKET HEAD BOLT M5X25;  1

019; 251513-6  H.S.H.BOLT M5X25;  2

020; 347107-4  PROTECTOR CLAMP 24;  1

021; 922216-6  HEX. SOCKET HEAD BOLT M5X14;  1

022; 191B54-1  PROTECTOR U 430 SET MG;  1

024; 144316-4  PROTECTOR U EXT. 420-450 COMP;  1

024; 346696-6  HOOK;  2

024; 232284-4  LEAF SPRING;  2

025; 459765-5  CUTTER EXTENSION;  1

026; 347115-5  CUTTER;  1

027; 266459-3  TAPPING SCREW 5X25;  1

028; 140J61-9  HANDLE 22 COMPLETE;  1

029; 168796-0  KNOB 57;  1

030; 144313-0  UPPER HANDLE HOLDER COMPLETE;  1

030; 263005-3  RUBBER PIN 6;  1

031; 319517-5  LOWER HANDLE HOLDER;  1

032; 233309-7  COMPRESSION SPRING 17;  1

033; 319959-3  PIPE HOLDER;  1

034; 318426-5  PIPE CLAMP;  1

035; 922241-7  HEX. SOCKET HEAD BOLT M5X25;  2

036; 140S82-5  SHAFT PIPE COMPLETE I;  1

036; 819312-8  MAKITA LOGO LABEL;  1

036; 819J22-7  CAUTION LABEL;  1

037; 327056-1  SHAFT;

038; 412305-0  PIPE HOLDER 24;  1

039; 183L60-0  GRIP SET;  1

039; 252180-0  HEX. LOCK NUT M5-8;  1

040; 140K36-4  INDICATION CIRCUIT COMPLETE G;  1

041; 140W06-5  SWITCH CIRCUIT COMPLETE G;  1

041; 819J26-9  SWITCH LABEL;  1

042; 651436-2  SWITCH C3JW-1A-P-2;  1

043; 233540-5  TORSION SPRING 11;  1

044; 459145-5  SWITCH LEVER;  1

045; 233101-1  COMPRESSION SPRING 4;  1

046; 459146-3  LOCK OFF LEVER;  1

047; 183L60-0  GRIP SET;  1

047; 252180-0  HEX. LOCK NUT M5-8;  1

048; 699132-4  POWER SUPPLY CORD UNIT;  1

049; 687260-7  STRAIN RELIEF;  1

050; 266326-2  TAPPING SCREW 4X18;  1

051; 266326-2  TAPPING SCREW 4X18;  5

052; 911258-5  PAN HEAD SCREW M5X35;  1

053; 232589-2  TORSION SPRING 12;  1

054; 183N86-4  CONNECTOR HOLDER SET;  1

055; 266511-7  + FLAT FILLISTER HEAD SCREW M5;  1

056; 699146-3  POWER SUPPLY CORD UNIT;  1

057; 183N86-4  CONNECTOR HOLDER SET;  1

058; 266429-2  TAPPING SCREW 3X16;  4

059; 922244-1  H.S.H.BOLT M5X25 WITH WG;  1

060; 412302-6  CORD HOLDER;  1

061; 457458-8  CLAMP;  1

062; 457458-8  CLAMP;  2

063; 319919-5  PIPE BRACKET;  1

064; 911233-1  PAN HEAD SCREW M5X20;  4

065; 263002-9  RUBBER PIN 4;  1

066; 325811-5  SPINDLE HUB;  1

067; 211131-2  BALL BEARING 6001DDW;  1

068; 226931-7  HELICAL GEAR 29;  1

069; 211150-8  BALL BEARING 6901ZZ;  1

070; 266459-3  TAPPING SCREW 5X25;  4

071; 136231-6  GEAR BOX ASS'Y;  1

072; 213961-7  O RING 22;  1

073; 226932-5  HELICAL GEAR 10;  1

074; 210005-4  BALL BEARING 608DDW;  1

075; 519587-6  ROTOR ASS'Y;  1

076; 210062-2  BALL BEARING 607ZZ;  1

077; 266326-2  TAPPING SCREW 4X18;  2

078; 459764-7  BAFFLE PLATE;  1

079; 266326-2  TAPPING SCREW 4X18;  2

080; 687124-5  STRAIN RELIEF;  1

081; 687051-6  STRAIN RELIEF;  1

082; 183N25-4  HOUSING COVER SET;  1

083; 183N71-7  HOUSING SET;  1

084; 687149-9  STRAIN RELIEF;  1

085; 266326-2  TAPPING SCREW 4X18;  2

086; 459763-9  MOTOR HOUSING;  1

087; 620C66-8  CONTROLLER;  1

088; 629471-8  STATOR;  1

091; 183N25-4  HOUSING COVER SET;  1

092; 266326-2  TAPPING SCREW 4X18;  2

093; 922211-6  H.S.H.BOLT M5X12 WITH W;  1

094; 922233-6  H.S.H.BOLT M5X20 WITH WR;  1

095; 183N71-7  HOUSING SET;  1

096; 266326-2  TAPPING SCREW 4X18;  7

097; 856S03-4  UR101C NAME PLATE;  1

099; 922211-6  H.S.H.BOLT M5X12 WITH W;  1

100; 922233-6  H.S.H.BOLT M5X20 WITH WR;  1

A01; 782238-6  BOX WRENCH 17;  1

A02; 783202-0  HEX. WRENCH 4;  1

A03; 197243-4  BAND ASSEMBLY SET;  1

A04; 831304-7  ACCESSORY BAG;  1

A05; 198345-9  CUTTER BLADE 255-2 SET ME;  1

A06; 144392-8  TOOL COVER 2T;  1

A07; 197804-0  TRIMMER HEAD 95-M10L SET M;  1

A08; 198384-9  PLASTIC BLADE 255 SET M;  1

A09; 195246-2  SAFETY GOGGLE;  1
