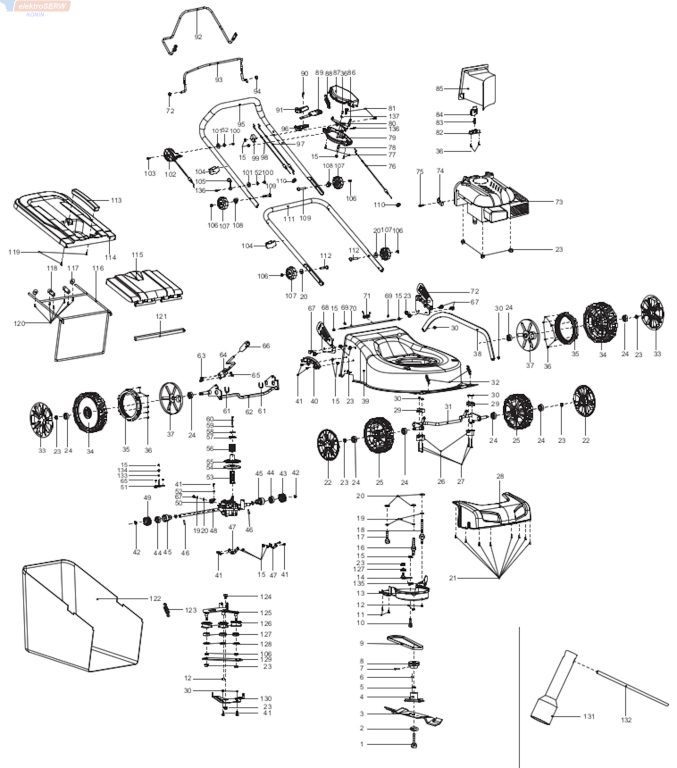

* Lista części do PLM4612 - kosiarka spalinowa



pozycja na schemacie,opis produktu, nr katalogowy:

1;  Makita Blade Tighten Screw Plm4611/12   67100606

2;  Makita Washer Use: Da00000529   671010730

3;  Makita 671001451 460mm Lawnmower Blade for Petrol Lawnmowers   671001451

4;  Makita Blade Support Plm4631 / 5600Makita Blade Support Plm4631 / 5600   671015252

5;  Makita Flat Washer Plm4611/4612   671007046

6;  Makita 4.8 X 4.7 X 46.5 Flat Key Plm4631 / Plm5113 /5121 / 5600Makita 4.8 X 4.7 X 46.5 Flat Key Plm4631 / Plm5113 /5121 / 5600   671090002

7;  Makita Hexagon Head Bolt M6X8 Plm5113Makita Hexagon Head Bolt M6X8 Plm5113   671003005

8;  Makita Pulley 45 Plm4612   671401201

9;  Makita V BeltMakita V Belt   671020282

10;  Makita Screw Plm4612/5113   671006066

11;  Makita 5 X 16 Self Tapping Screw Plm4631 / Plm5600   671001037

12;  Makita Hexagonal Locking Nut M8 Plm4631   671005008

13;  Makita Belt Cover Plm4611/4612Makita Belt Cover Plm4611/4612   671658001

14;  Makita Plate Plm4612/5113   671001539

15;  Makita Hexagonal Locking Nut M6 Plm4631   671005024

16;  Makita Special Screw M8 X 17 X 35 Plm5600 / Plm4631   671003044

17;  Makita Hexagon Bolt M8 X 35 Plm5600 / Plm4631   671006025

18;  Makita Special Screw M8 X 60 X 17 Plm5600 / Plm4631   671003024

19;  Makita Spring Ringe Elm4110 / Plm4631   671008002

20;  Makita Washer 8 Elm 3710 / 4110 / 3310 / Plm4631Makita Washer 8 Elm 3710 / 4110 / 3310 / Plm4631   671007007

21;  Makita Self Tapping Screw 4.2X10 Plm4   671001062

22;  Makita Wheel Cover 7 Plm4110/4611/46   671001176

23;  Makita Hex Locking Nut M8 Plm5600 / Plm4631   671005028

24;  Makita Ball Bearing 6201Z Plm5600 / Plm4631   671004012

25;  Makita Wheel Cpl 7 Plm4631 / 4110 / 4611   671020150

26;  Makita Fixed Bracket Elm4110/Plm4110/   671418001

27;  Makita Trigger Bolt M6X45 Elm4110/Plm   671002028

28;  Makita Front Cover Plm4611/4612Makita Front Cover Plm4611/4612   671659001

29;  Makita Pressing Plate Elm4110 / Plm5600 / Plm4631   671445001

30;  Makita Locking Nut M6 Plm5600 / Plm4631Makita Locking Nut M6 Plm5600 / Plm4631   671005005

31;  Makita Front Wheel Axle Plm4611/4612   671001786

32;  Makita Extenstion Spring Elm4110/Plm4   671011125

33;  Makita Wheel CoverMakita Wheel Cover   671001177

34;  Makita Wheel Use 671020300Makita Wheel Use 671020300   671020170

35;  Makita Teeth Ring Plm4631 / Plm4611 / Plm4612Makita Teeth Ring Plm4631 / Plm4611 / Plm4612   671464001

36;  Makita Self-Tapping Screw 4 X 16 Plm560 / Plm4631   671001005

37;  Makita Dust Proof Wheel Cover Plm4611   671465001

38;  Makita Link Rod 528Mm Plm4611/4612   671144002

39;  Makita Deck Blue Plm4612   671001529

40;  Makita Height Adjustment Plate Elm411   671001018

41;  Makita Trigger Bolt M6 X 12 Plm5600 / Plm4631   671002019

43;  Makita Left Gear Use Da00001090   671003001

44;  Makita Bearing Plm5600 / Plm4631 / 5121   671004023

45;  Makita Bearing Housing Plm5600 / Plm4631   671002035

46;  Makita Cylindrical Pin Use Da00000597   671090001

47;  Makita Ring Of Axis Fixing Plm5600 / Plm4631   671001244

48;  Makita Gear Box Plm4612   671502017

49;  Makita Right Gear Use Da00001091   671003002

50;  Makita Fixed Board 2 Of Gear Box Plm4   671001521

51;  Makita Fixed Plate Plm5113N   671001717

52;  Makita Spring Washer Plm5600 / Plm4631   671008003

53;  Makita Lower Driven Axle Assy Plm4612   671001082

54;  Makita Lower Driven Axle Assy Plm4612   671001082

55;  Makita Pulley Upper Plm4612/5113   671010540

56;  Makita Spring Plm4612/5113   671011122

57;  Makita Pressing Plate Plm4612/5113   671001457

58;  Makita Wire Block Ring Axis Plm4612   671009020

59;  Makita Spring Washer 5 Plm4612/5113   671008004

60;  Makita Bolt M5X55 Plm4612/5113   671006123

62;  Makita Rear Axle Assy Plm4611/4612   671144602

63;  Makita Trigger Bolt M5X12 Elm4110/Plm   671002029

64;  Makita Handle Set Elm4110/Plm4110/4   671001430

65;  Makita Hexagonal Locking Nut M5 Elm41   671005011

66;  Makita Lever Height Adjust Cpl Plm411Makita Lever Height Adjust Cpl Plm411   671102602

67;  Makita Hex Head Bolt M8 X 6 Plm5600 / Plm4631   671006064

68;  Makita Right Bracket Of Handle Elm411   671001180

69;  Makita Open Pin Elm4110 / Plm4110 / Plm4631   671009017

70;  Makita Long Pole Plm4611/4612/5113   671001518

71;  Makita Spring Of Rear Cover Board Elm   671011101

72;  Makita Left Bracket Of Handle Elm4110   671001179

74;  Makita Pulling Cord Compression Plm41   671010830

75;  Makita Screw M5X14 Plm4110/4611/4612   671003012

76;  Makita Control Cable (Gearbox)18 Plm   671001116

77;  Makita Self Tapping Screw Uv380   671010630

78;  Makita Sleeve 9X32 Plm4612/5113   671001513

79;  Makita Speed Adjustment Box Lower Plm   671470001

80;  Makita Speed Adjust'T Box Fixed Plate   671001514

81;  Makita Hexagon Bolt M6X40 Plm4612/511   671006063

82;  Makita Pressing Plate Plm5600 / Plm4631   671317001

83;  Makita Spring Plm5600 / Plm4631 / Plm4110   671011005

84;  Makita Locking Button Plm5600 / Plm4631   671316004

85;  Makita Mulching Plug Box   D671660001

86;  Makita Bolt M6X60 Plm4612/5113   671001511

87;  Makita Speed Adjustment Box Upper Plm   671470002

88;  Makita Extention Spring Plm4612/5113   671011123

89;  Makita Speed Adjustment Box Pole Plm4   671001458

90;  Makita Self Tapping Screw 4.2X15 Plm   671001047

91;  Makita Speed Adjustment Handle Upper   671471001

92;  Makita Lever, Driving Plm4611/4612/51   671001731

93;  Makita Frameout Pole Plm4110/4611/461Makita Frameout Pole Plm4110/4611/461   671001448

94;  Makita Pressing Plate Plm4611/4612/51   671001524

95;  Makita Upper Handle Assy Plm4612   671002002

96;  Makita Speed Adjustment Handle Lower   671471002

97;  Makita Control CableMakita Control Cable   671001113

98;  Makita Cable Control - Use 671121801   671001115

99;  Makita Fixed Bracket Plm5600 / Plm4631   671336001

100;  Makita M6 Hex Lock Nut Plm5600 / Plm4631   671005016

101;  Makita Washer Plm5600 / Plm4631 / 5121 / 4110   671007008

102;  Makita Handle Cable Throttle 18 Plm4611 Plm4612 Lawn MowerMakita Handle Cable Throttle 18 Plm4611 Plm4612 Lawn Mower   671001137

103;  Makita Bolt M6X50 Plm5121/4110/4611/   671006059

104;  Makita Cable Clip Plm5121/4611/4612/4   671177001

105;  Makita Cable Hook Plm5600 / Plm4631 / Plm5121   671001647

106;  Makita Nut Plm5121/4110/4611/Elm4121/Makita Nut Plm5121/4110/4611/Elm4121/   671005007

107;  Makita Knob Use: Da00000564Makita Knob Use: Da00000564   671453001

108;  Makita Curve Shape Gasket Plm5600   671001085

109;  Makita Flat Head Bolt M8X52 Plm5121Makita Flat Head Bolt M8X52 Plm5121   671006004

111;  Makita Lower Handle Pole Plm4611/4612   671001453

112;  Makita Flat Head Bolt M8 X 35 Plm5600 / Plm4631Makita Flat Head Bolt M8 X 35 Plm5600 / Plm4631   671006118

113;  Makita Handle Of Grass Catcher Elm411   671454001

114;  Makita Cover Of Grass Catcher Plm4611   671467001

115;  Makita Rear Cover Board Plm4611/4612   671468001

116;  Makita Grass Catcher Bracket Plm4611/   671001443

117;  Makita Tighten Pressing Plate Plm4631   671001436

118;  Makita Pressing Plate Of Front Wheel   671001203

119;  Makita Self Tapping Screw Plm4110/461   671001055

120;  Makita Self Tapping Screw 5X12 Plm56   671001054

121;  Makita Pressing Plate Plm4611/4612/51   671001353

122;  Makita Grass Catcher 60L Plm4611/4612   671001418

123;  Makita Spring Of Speed Adjust Plm4612Makita Spring Of Speed Adjust Plm4612   671011021

124;  Makita Fixed Bolt Plm4612/5113   671003042

125;  Makita Fixed Board Of Speed Adjustm'T   671001455

126;  Makita Speed Adjustment Wheel Plm4612   671001056

127;  Makita Ball Bearing 6001Rs Plm4612/51   671004015

128;  Makita Ring 28 Plm4612/5113   671009021

129;  Makita Pressing Plate Of Fixed Board   671001533

130;  Makita Boarding Fixing Plm4612/5113   671001456

131;  SPANNER 21MM PLM5600 / PLM4631 / PLM5121   671001078

132;  SPANNER POLE 8 x 110MM PLM5600 / PLM4631   671001079

133;  Makita Spring Plm5113N   671011156

134;  Makita Shaft Sheath Plm5113N   671002038

135;  Makita Spring Plm4612/5113   671011136

136;  Makita Hex Head Bolt M6X35 Plm4110/46   671006011

137;  Makita Washer 12/4.5X1.0 Plm4611/4612   671002075
