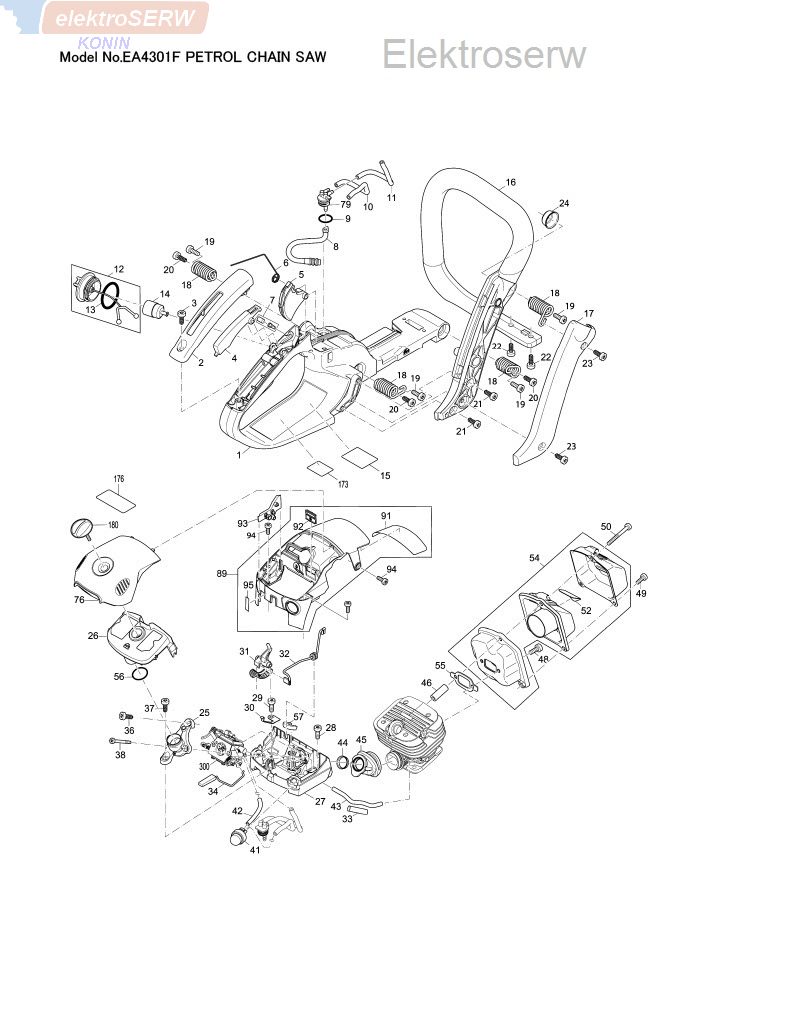

* Makita schemat i spis części do piły spalinowej EA4301F

Pozycja na schemacie, nr katalogowy, opis, ilość:

1; 143341-2; FUEL TANK WELDED BLUE; 1

2; 456143-0; GRIP OUTER SHELL; 1

3; 266478-9; H.L.TAPPING SCREW 5.5X16; 1

4; 456142-2; CATCH LEVER; 1

5; 456141-4; THROTTLE LEVER; 1

6; 231866-9; TORSION SPRING 10; 1

7; 195762-4; AIR VALVE SET; 1

8; 424456-7; FUEL LINE; 1

9; 213586-7; O RING 11.5; 1

10; 424756-5; TUBE 2.5-118; 1

11; 424757-3; TUBE 3.0-93; 1

12; 168823-3; TANK CAP COMPLETE; 1

13; 213080-9; O RING 29.5; 1

014-1; 163447-0; FUEL FILTER; 1

15; 852C41-8; EA4301F NAME PLATE; 1

16; 456140-6; TUBULAR HANDLE; 1

17; 456151-1; SIDE COVER MAKITA BLUE; 1

18; 234189-4; COMPRESSION SPRING 12; 4

19; 266605-8; H.L. SOCKET HEAD BOLT M5X16; 4

20; 266478-9; H.L.TAPPING SCREW 5.5X16; 3

21; 266478-9; H.L.TAPPING SCREW 5.5X16; 2

22; 266478-9; H.L.TAPPING SCREW 5.5X16; 2

23; 266478-9; H.L.TAPPING SCREW 5.5X16; 2

24; 346517-2; CUP WASHER 6; 1

25; 456135-9; INTAKE MANIFOLD; 1

025-1; 459832-6; INTAKE MANIFOLD; 1

26; 123452-9; AIR FILTER CPL.NYLON; 1

27; 456169-2; CARBURETOR BOTTOM; 1

28; 266605-8; H.L. SOCKET HEAD BOLT M5X16; 1

29; 266605-8; H.L. SOCKET HEAD BOLT M5X16; 1

30; 346926-5; CONTACT SPRING; 1

030-1; 347357-1; CONTACT SPRING; 1

31; 456139-1; CHOKE LEVER; 1

32; 632F41-0; SHORT-CIRCUIT CABLE; 1

33; 424759-9; ISOLATING TUBE 6-30; 1

34; 143330-7; THROTTLE LINKAGE; 1

36; 266478-9; H.L.TAPPING SCREW 5.5X16; 1

37; 266478-9; H.L.TAPPING SCREW 5.5X16; 1

38; 251478-2; H.L. SOCKET HEAD BOLT M4X40; 2

038-1; 266604-0; H.L. SOCKET HEAD BOLT M4X40; 2

41; 168398-2; PRIMER PUMP; 1

42; 424754-9; TUBE 2.5-55; 1

43; 424755-7; TUBE 2.5-93; 1

44; 346413-4; BUSH 17; 1

45; 424753-1; INTAKE HOSE; 1

46; 326675-0; CONNECTING LINK; 1

046-1; 325939-9; CONNECTING LINK; 1

48; 266605-8; H.L. SOCKET HEAD BOLT M5X16; 2

49; 266612-1; H.L. SOCKET HEAD BOLT M5X10; 2

50; 266943-8; H.L. SOCKET HEAD BOLT M5X40; 1

050-1; 266606-6; H.L. SOCKET HEAD BOLT M5X40; 1

52; 352027-9; SPARK ARRESTER SCREEN; 1

54; 161362-2; MUFFLER COMPLETE; 1

55; 346304-9; GASKET; 1

56; 213085-9; O-RING 20; 1

57; 424752-3; PACKING RING; 1

59; 451462-9; ISOLATING WASHER; 2

60; 319338-5; CYLINDER D=42; 1

060-1; 144710-0; CYLINDER COMPLETE; 1

060-2; 140L37-8; CYLINDER COMPLETE; 1

61; 143332-3; PISTON 42 CPL.; 1

62; 257383-1; PISTON RING 42; 1

63; 268339-9; PISTON PIN 9; 1

64; 232302-8; CIRCRIP 9; 2

65; 266960-8; H.L. SOCKET HEAD BOLT M5X20; 4

66; 346925-7; CYLINDER BASE GASKET; 1

67; 143329-2; CRANKSHAFT CPL.; 1

067-1; 140H65-9; CRANKSHAFT COMPLETE; 1

68; 211494-6; BALL BEARING 6201; 1

068-1; 211341-1; BALL BEARING 6201; 1

69; 143333-1; CRANKCASE CS COMPLETE BLUE; 1

069-1; 144393-6; CRANKCASE CS COMPLETE BLUE; 1

70; 143337-3; CRANKCASE MS COMPLETE BLUE; 1

070-1; 144394-4; CRANKCASE MS COMPLETE BLUE; 1

71; 258038-1; CLAMPING PIN; 2

071-1; 951063-8; SPRING PIN 3-16; 2

72; 346924-9; CRANK CASE GASKET; 1

74; 346301-5; SPIKE BAR; 1

75; 266605-8; H.L. SOCKET HEAD BOLT M5X16; 2

76; 456159-5; HOOD; 1

77; 168504-9; VENT VALVE; 1

78; 266960-8; H.L. SOCKET HEAD BOLT M5X20; 6

79; 452018-1; FUEL NIPPLE; 1

80; 219024-7; DEEP GROOVE BALL BEARING; 1

87; 168823-3; TANK CAP COMPLETE; 1

88; 213080-9; O RING 29.5; 1

89; 161368-0; HOOD COMPLETE BLACK; 1

91; 346929-9; PROTECTION FILM HOOD; 1

92; 456157-9; SHUTTER PLATE; 1

93; 456138-3; GUIDE; 1

94; 266605-8; H.L. SOCKET HEAD BOLT M5X16; 3

95; 816917-5; INDICATION LABEL; 1

96; 212093-7; NEEDLE CAGE 912; 1

100; 161365-6; STARTER COMPLETE BLUE; 1

111; 266605-8; H.L. SOCKET HEAD BOLT M5X16; 4

112; 807A60-7; EA4301F MODEL NO. LABEL; 1

113; 456137-5; AIR GUIDE PLATE; 1

114; 161357-5; IGNITION COIL COMPLETE; 1

115; 266472-1; TORX SOCKET HEAD BOLT M5X20; 2

115-1; 266472-1; TORX SOCKET HEAD BOLT M5X20; 2

115-2; 265641-1; H.L. SOCKET HEAD BOLT M5X20; 2

116; 444042-8; ISOLATING TUBE 6-80; 1

117; 234358-7; TERMINAL SPRING; 1

118; 424750-7; PLUG CAP; 1

120; 168599-2; SPARK PLUG NGK CMR7A-5; 1

121; 143331-5; FLYWHEEL COMPLETE; 1

122; 346916-8; RATCHET; 2

123; 264022-6; HEX. NUT M8X1; 1

124; 267822-3; SPRING WASHER 8; 1

125; 456136-7; HAND PROTECTION; 1

126; 266605-8; H.L. SOCKET HEAD BOLT M5X16; 1

127; 326596-6; BUSH; 1

128; 450926-0; STOPPER CASE; 1

129; 231870-8; TENSION SPRING 10; 1

130; 163500-2; LINK PLATE COMPLETE; 1

131; 257934-0; STOP RING E-4; 1

131-1; 961011-9; STOP RING E-4; 1

132; 346029-5; BRAKE BAND; 1

133; 259045-7; STOP RING E-8; 1

134; 267820-7; WASHER 29; 1

135; 143339-9; CLUTCH DRUM COMPLETE; 1

135-1; 143339-9; CLUTCH DRUM COMPLETE; 1

136-1; 123857-3; CLUTCH ASSEMBLY; 1

136-2; 127443-2; CLUTCH ASSEMBLY; 1

137-1; 232352-3; TENSION SPRING 6; 3

137-2; 232352-3; TENSION SPRING 6; 3

138; 267389-1; FLAT WASHER 12; 1

138-1; 253454-2; FLAT WASHER 12; 1

139; 161346-0; OIL PUMP COMPLETE; 1

142; 168645-1; OIL SUCTION LINE COMPLETE; 1

143; 234207-8; COMPRESSION SPRING 6; 1

144; 452666-6; NIPPLE; 1

145; 424178-9; OIL TUBE; 1

146; 325604-0; BUSH; 1

147; 450956-1; PUMP DRIVE; 1

148; 266605-8; H.L. SOCKET HEAD BOLT M5X16; 1

150; 810075-9; CAUTION LABEL; 1

150-1; 817T83-1; CAUTION LABEL; 1

150-2; 818L12-9; CAUTION LABEL; 1

155; 266978-9; BOLT; 2

157; 346927-3; CHAIN BRAKE COVER; 1

158; 266477-1; H.L. C.S. HEAD SCREW M5X12; 2

159; 161440-8; SPROCKET GUARD CPL. MAKITA; 1

159-1; 161791-9; SPROCKET GUARD CPL. MAKITA; 1

160; 252145-2; COLLARED HEX NUT M8; 2

160-1; 264055-1; COLLARED HEX. NUT M8; 2

162; 251480-5; TAPPING SCREW ST3.5X9.5; 1

162-1; 266484-4; H.L SOCKET HEAD BOLT M5X12; 1

163; 213082-5; O-RING 7; 1

163-1; 213594-8; O RING 7; 1

164; 226693-7; HELICAL GEAR 18; 1

164-1; 227744-9; HELICAL GEAR 18; 1

165; 226692-9; HELICAL GEAR 11; 1

165-1; 227743-1; HELICAL GEAR 11; 1

166; 452667-4; GEAR COVER PROFESSIONAL; 1

167; 346300-7; TENSION SLIDE; 1

167-1; 347252-5; TENSION SLIDE; 1

168; 450929-4; GUIDE PLATE; 1

168-1; 452668-2; CLAMP SCREW BEDDING; 1

169; 346518-0; GUIDE PLATE; 1

170; 313212-9; HAND GUARD GUIDE; 1

171; 234093-7; COMPRESSION SPRING 3; 1

172; 213141-5; OIL SEAL 12; 1

177; 266626-0; H.L. TAPPING SCREW 5X12; 2

178; 232303-6; TORSION SPRING 13; 2

179; 325938-1; ANGULAR NIPPLE; 1

180; 266977-1; THUMB SCREW; 1

300; 161370-3; CARBURETOR DM24B; 1

300-1; 161370-3; CARBURETOR DM24B; 1

300-1; ZJ00000077; NOZZLE ASSEMBLY; 1

300-1; ZJ00000097; PUMP COVER KIT; 1

300-1; ZJ00000020; SCREW (PUMP COVER); 1

300-1; ZJ00000026; SCREW,IDLE MIXTURE; 1

300-1; ZJ00000039; SCREW,MAIN MIXTURE; 1

300-1; ZJ00000037; STRAINER; 1

300-1; ZJ00000073; SPRING; 1

300-1; ZJ00000015; THROTTLE SHAFT ASSY; 1

300-1; ZJ00000012; SHAFT ASSY,CHOKE; 1

300-1; ZJ00000030; VALVE,THROTTLE; 1

300-1; ZJ00000001; SCREW; 2

300-1; ZJ00000036; PLUG,ACC POCKET; 1

300-1; ZJ00000098; THROTTLE LEVER SCREEN; 1

300-1; ZJ00000022; LEVER,THROTTLE; 1

300-1; ZJ00000023; SCREW; 1

300-1; ZJ00000021; COLLAR; 1

300-1; ZJ00000028; COVER,METERING; 1

300-1; ZJ00000014; SCREW (WITH SERRATION); 2

300-1; ZJ00000033; WASHER; 1

300-1; ZJ00000031; LEVER,CHOKE; 1

300-1; ZJ00000099; CHOKE LEVER; 1

300-1; ZJ00000017; E-RING; 1

300-1; ZJ00000024; VALVE,CHOKE; 1

300-1; ZJ00000005; PLUNGER KIT; 1

300-1; ZJ00000032; SPRING,CHOKE RETURN; 1

300-1; ZJ00000040; SPRING,THROTTLE RETURN; 1

301; ZJ00000003; STRAINER; 1

302; ZJ00000008; PIN; 1

303; ZJ00000078; SPRING, METERING LEVER; 1

304; ZJ00000006; LEVER; 1

305; ZJ00000007; VALVE, INLET NEEDLE; 1

306; ZJ00000009; SCREW (METERING LEVER PIN); 1

307; ZJ00000079; METERING CHAMBER GASKET; 1

308; ZJ00000013; DIAPHRAGM ASS'Y,METERING; 1

309; ZJ00000029; DIAPHRAGM, PUMP; 1

310; ZJ00000016; GASKET, PUMP; 1

311; ZJ00000081; REBUILT KIT; 1

312; ZJ00000082; GASKET&DIAPHRAGM KIT; 1

313; 347438-1; COOLING PLATE; 1

314; 183M69-8; NYLON FILTER SET BLACK; 1

314-1; 183M92-3; NYLON FILTER SET BLACK; 1

A01; 165390-9; GUIDE BAR 18; 1

A02; 419560-5; CHAIN PROTECTION COVER 430; 1

A03; 197324-4; TOOL KIT; 1

A03; 782025-3; TORX WRENCH; 1

A03; 782026-1; UNIVERSAL WRENCH 13/16; 1

A03; 783012-5; SCREWDRIVER; 1

A03; 831340-3; TOOL BAG; 1

A04; 197568-6; SAW CHAIN SET; 1

A04-1; 196214-8; SAW CHAIN 18 SET; 1

A04-2; 196214-8; SAW CHAIN 18 SET; 1

B01; 183L41-4; CYLINDER PISTON SET; 1
