Makita - tuleja ( uchwyt narzędzia  ) - nowy oryginalny

Numer  katalogowy : 142972-4



Zastosowanie : HR2651, HR003G, HR001G, DHR282, DHR280

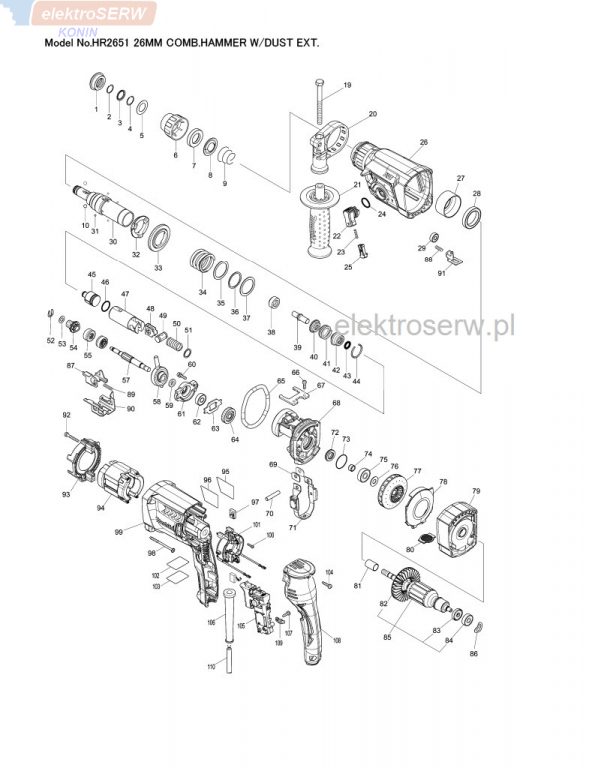

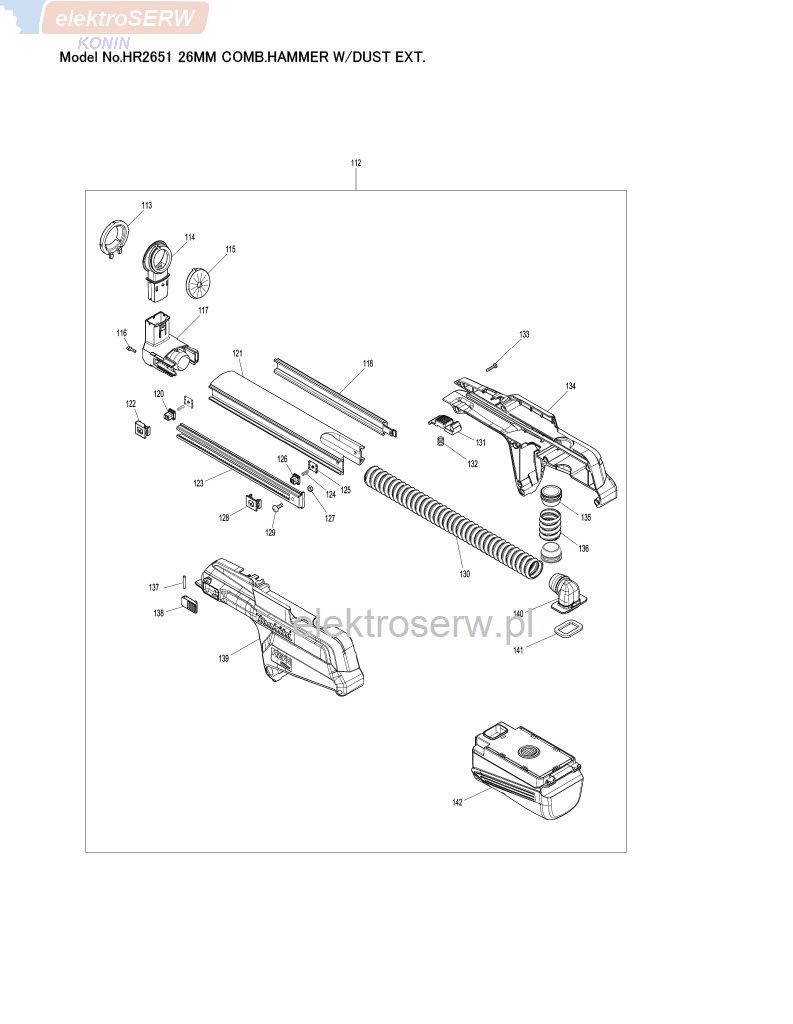

Części zamienne ze schematu

• Sub, Parts No., Parts Description

1: 286288-8, CAP 35

2: 233989-9, RING SPRING 14

3: 346834-0, WASHER 16

4: 233992-0, RING SPRING 15

5: 267114-0, FLAT WASHER 17

6:  455393-4, CHUCK COVER

7:  325813-1, RING 21

8:  346177-0, GUIDE WASHER

9: 233916-6, CONICAL COMP. SPRING 21-29

10: 126882-3, GRIP ASSEMBLY

• D10, , INC. 11-19

11: 144959-2, LOCK BUTTON COMPLETE

12: 233360-7, COMPRESSION SPRING 4

13: 265625-9, THUMB SCREW M6X50

14: 422258-5, SPONGE SHEET

15: 458355-1, SIDE HANDLE BASE

16: 931302-2, HEX. NUT M6

17: 458357-7, GRIP 36

18: 422255-1, CAP

19: 161838-9, FIX PIN

20: 266351-3, TAPPING SCREW 4X35

21: 144965-7, GEAR HOUSING COMPLETE

• C10, 213345-9, OIL SEAL 25
• C20, 331890-3, CUP SLEEVE

22:  211294-4, BALL BEARING 6806LLU

23:  211012-0, BALL BEARING 606ZZ

24: 233360-7, COMPRESSION SPRING 4

25: 347228-2, LOCK PLATE

26: 213278-8, O RING 17

27: 135961-6, CHANGE LEVER ASSY

• D10, , INC. 26

28: 234264-6, COMPRESSION SPRING 3

29: 457709-9, LOCK BUTTON

30: 216022-2, STEEL BALL 7.0

31: 216019-1, STEEL BALL 3

32: 142972-4, TOOL HOLDER COMPLETE

• C10, 213344-1, OIL SEAL 9

33: 332139-4, DRIVING FLANGE

34: 227360-7, SPUR GEAR 51

35: 234148-8, COMPRESSION SPRING 31

36: 267153-0, FLAT WASHER 30

37: 257932-4, SPIRO LOCK WASHER 30

38: 267153-0, FLAT WASHER 30

39: 325783-4, SLEEVE 9B

40: 325789-2, IMPACT BOLT A

41: 325792-3, WASHER 10

42: 234149-6, COMPRESSION SPRING 20

43: 325793-1, O-RING CASE B

44: 213073-6, O RING 9

45: 233979-2, RING SPRING 28

46: 325784-2, STRIKER

47: 213258-4, O RING 17.5

48: 327079-9, PISTON CYLINDER

49: 346036-8, GUIDE PLATE

50: 324215-8, PISTON JOINT

51: 232449-8, COMPRESSION SPRING 14

52: 265627-5, H.S.BUTTON HEAD BOLT M4X6

53: 347344-0, SPRING GUIDE

54: 922148-7, HEX. SOCKET HEAD BOLT M4X25

55: 144960-7, INNER SUPPORT COMPLETE

56: 257336-0, STOP RING EXT U-6

57: 253186-1, FLAT WASHER 7

58: 226170-9, SPUR GEAR 10

59: 332125-5, CLUTCH CAM

60: 327078-1, CAM SHAFT

61: 219030-2, SWASH BEARING 10

62: 257321-3, RING 8

63: 346538-4, WEIGHT HOLDER GUIDE

64: 253077-6, FLAT WASHER 6

65: 961018-5, STOP RING E-5

66: 310869-7, COUNTER WEIGHT

67: 922148-7, HEX. SOCKET HEAD BOLT M4X25

68: 319674-9, BEARING BOX

69: 211032-4, BALL BEARING 608ZZ

70: 347343-2, BEARING RETAINER B

71: 221599-4, SPIRAL BEVEL GEAR 32

72: 213850-6, O-RING 74

73: 256536-9, FLAT FILLISTER HD PIN 6

74: 135962-4, INNER HOUSING ASSY

• D10, , INC. 52,53,72,76,78

75:  232436-7, COMPRESSION SPRING 10

76:  443153-6, FELT

77: 922118-6, HEX. SOCKET HEAD BOLT M4X12

78:  213008-7, O RING 22.4

79: 347230-5, CHANGE PLATE B

80: 234343-0, COMPRESSION SPRING 5

81:  347229-0, CHANGE PLATE A

82: 346536-8, BEARING RETAINER A

83: 144964-9, SPIRAL BEVEL GEAR 11 COMPLETE

84: 210024-0, BALL BEARING 608LLU

85: 253835-0, FLAT WASHER 8

86: 519513-5, ROTOR ASSY

• D10, , INC. 83-85,87

87: 210022-4, BALL BEARING 626DDW

88:  629340-3, STATOR

89: 652069-6, FLAT HEAD SCREW M3X6

90: 266490-9, TAPPING SCREW PT 2X6

91: 620815-5, CONTROLLER

97: 135963-2, HOOK ASSY

98: 912207-5, COUNTERSUNK HEAD SCREW M5X10

103: 264002-2, SQUARE NUT M5

104: 422257-7, BELLOWS

105: 183J31-5, HOUSING SET

• C10, 263005-3, RUBBER PIN 6
• D10, , INC. 112

106: 266326-2, TAPPING SCREW 4X18

107: 854H95-1, DHR280 NAME PLATE

108: 422256-9, RUBBER RING 10

109: 257438-2, SLEEVE 10

110: 346783-1, PLATE

111: 620549-0, LED CIRCUIT

112: 183J31-5, HOUSING SET

• C10, 263005-3, RUBBER PIN 6
• D10, , INC. 105

113: 233598-4, TORSION SPRING 6

114: 313226-8, OPENER

115: 644809-6, TERMINAL

116: 854J01-8, DHR280 SERIAL NO. LABEL

117: 266326-2, TAPPING SCREW 4X18

118: 183J29-2, HANDLE SET

• D10, , INC. 122

119: 453124-5, F/R CHANGE LEVER

120: 651366-7, SWITCH C3JW-6B-24

121: 632L95-3, LEAD UNIT

122: 183J29-2, HANDLE SET

• D10, , INC.118

123: 135966-6, TOOL HOLDER ASSY

• D10, , INC. 31-45

A02: 194683-7, GREASE VESSEL SET

A04: 331886-4, DEPTH GAUGE

A05: 443122-7, CLOTH

A06B: 195173-3, DUSTCUP SET

A09B: ***DC18RD, DC18RD TWO PORT FAST CHARGER

• D10, , COMPO-PARTS

A10B: 197280-8, BATTERY BL1850B SET

A10-1B: 197280-8, BATTERY BL1850B SET

A11B: 839559-8, INNER TRAY

A12B: 821552-6, CONNECTOR PLASTIC CASE (TYPE4)

• C10, 453974-8, LATCH

A13B: 817L17-6, DHR280PT2J INDICATION LABEL

A14B: 817L14-2, DHR280PT2J PLASTIC CASE LABEL

A14-1B: 817L13-4, DHR280PT2J PLASTIC CASE LABEL

B01: 199233-3, HAMMER SERVICE KIT

• C10, 195127-0, OIL VESSEL SET
• D10, , INC. 1,2,4,30,44,45,47

E01:  818S15-5, CLEAR LABEL
