Makita TULEJA  ( uchwyt narzędzia ) - nowy oryginalny

• Numer katalogowy: 142972-4

Zastosowanie: HR2651, HR003G, HR001G, DHR282, DHR280

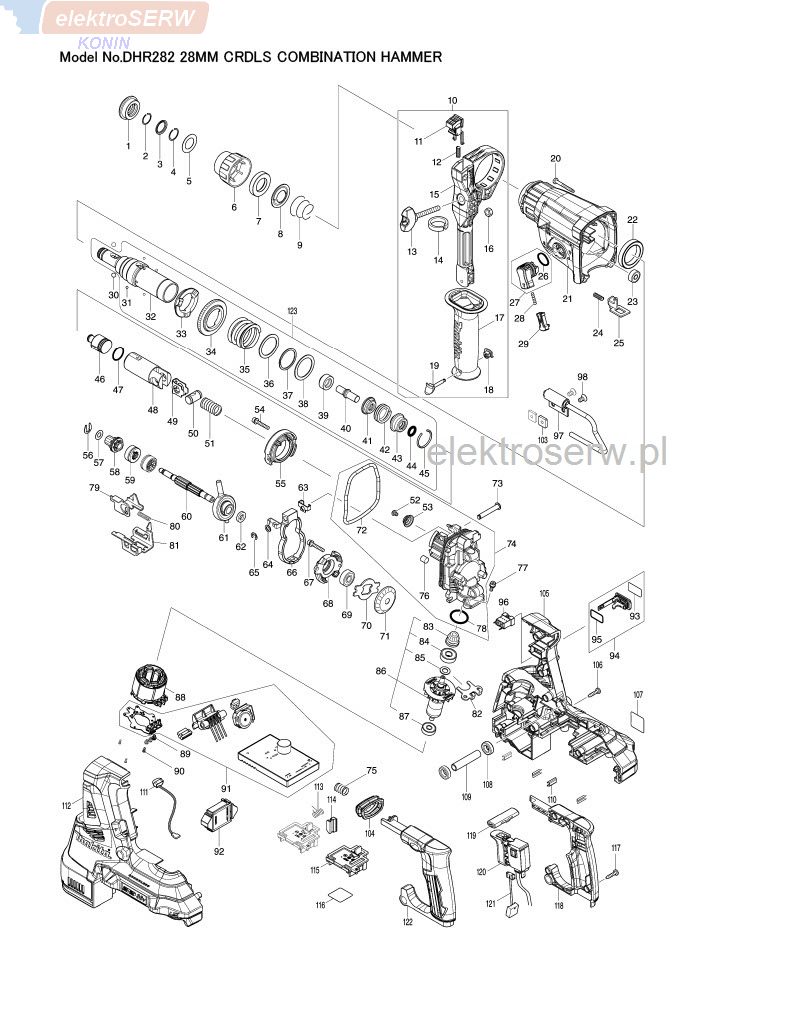

Spis częsci zamiennych ze schematu

• I1, : 286288-8, CAP 35, 1

  2, : 33989-9, RING SPRING 14, 1

  3, : 46834-0, WASHER 16, 1

  4, : 33992-0, RING SPRING 15, 1

  5, : 67114-0, FLAT WASHER 17, 1

  6, : 55393-4, CHUCK COVER, 1

  7, : 325813-1, RING 21, 1

  8, : 346177-0, GUIDE WASHER, 1

  9, : 233916-6, CONICAL COMP. SPRING 21-29, 1

  10, : 126882-3, GRIP ASSEMBLY, 1

  10, D10:  INC. 11-19,

  11: 144959-2, LOCK BUTTON COMPLETE, 1

  12, : 233360-7, COMPRESSION SPRING 4, 1

  13, : 265625-9, THUMB SCREW M6X50, 1

  14, : 422258-5, SPONGE SHEET, 1

  15, : 458355-1, SIDE HANDLE BASE, 1

  16, : 931302-2, HEX. NUT M6, 1

  17, : 458357-7, GRIP 36, 1

  18, : 422255-1, CAP, 1

  19, : 161838-9, FIX PIN, 1

  20, : 266351-3, TAPPING SCREW 4X35, 4

  21, : 144965-7, GEAR HOUSING COMPLETE, 1

  21, C10: 213345-9, OIL SEAL 25, 1

  21, C20: 331890-3, CUP SLEEVE, 1

  22, : 211294-4, BALL BEARING 6806LLU, 1

  23, : 211012-0, BALL BEARING 606ZZ, 1

  24, : 233360-7, COMPRESSION SPRING 4, 1

  25, : 347228-2, LOCK PLATE, 1

  26, : 213278-8, O RING 17, 1

  27, : 135961-6, CHANGE LEVER ASSY, 1

  27, D10: , INC. 26,

  28, : 234264-6, COMPRESSION SPRING 3, 1

  29, : 457709-9, LOCK BUTTON, 1

  30, : 216022-2, STEEL BALL 7.0, 2

  31, : 216019-1, STEEL BALL 3, 4

  32, : 142972-4, TOOL HOLDER COMPLETE, 1

  32, C10: 213344-1, OIL SEAL 9, 1

  33, : 332139-4, DRIVING FLANGE, 1

  34, : 227360-7, SPUR GEAR 51, 1

  35, : 234148-8, COMPRESSION SPRING 31, 1

  36, : 267153-0, FLAT WASHER 30, 1

  37, : 257932-4, SPIRO LOCK WASHER 30, 1

  38, : 267153-0, FLAT WASHER 30, 1

  39, : 325783-4, SLEEVE 9B, 1

  40, : 325789-2, IMPACT BOLT A, 1

  41, : 325792-3, WASHER 10, 1

  42, : 234149-6, COMPRESSION SPRING 20, 1

  43, : 325793-1, O-RING CASE B, 1

  44, : 213073-6, O RING 9, 1

  45, : 233979-2, RING SPRING 28, 1

  46, : 325784-2, STRIKER, 1

  47, : 213258-4, O RING 17.5, 1

  48, : 327079-9, PISTON CYLINDER, 1

  49, : 346036-8, GUIDE PLATE, 1

  50, : 324215-8, PISTON JOINT, 1

  51, : 232449-8, COMPRESSION SPRING 14, 1

  52, : 265627-5, H.S.BUTTON HEAD BOLT M4X6, 1

  53, : 347344-0, SPRING GUIDE, 1

  54, : 922148-7, HEX. SOCKET HEAD BOLT M4X25, 2

  55, : 144960-7, INNER SUPPORT COMPLETE, 1

  56, : 257336-0, STOP RING EXT U-6, 1

  57, : 253186-1, FLAT WASHER 7, 1

  58, :  226170-9, SPUR GEAR 10, 1

  59, : 332125-5, CLUTCH CAM, 2

  60, : 327078-1, CAM SHAFT, 1

  61, :  219030-2, SWASH BEARING 10, 1

  62, : 257321-3, RING 8, 1

  63, : 346538-4, WEIGHT HOLDER GUIDE, 2

  64, : 253077-6, FLAT WASHER 6, 1

  65, : 961018-5, STOP RING E-5, 1

  66, : 310869-7, COUNTER WEIGHT, 1

  67, : 922148-7, HEX. SOCKET HEAD BOLT M4X25, 2

  68, : 319674-9, BEARING BOX, 1

  69, : 211032-4, BALL BEARING 608ZZ, 1

  70, : 347343-2, BEARING RETAINER B, 1

  71, : 221599-4, SPIRAL BEVEL GEAR 32, 1

  72, : 213850-6, O-RING 74, 1

  73, : 256536-9, FLAT FILLISTER HD PIN 6, 1

  74, : 135962-4, INNER HOUSING ASSY, 1

  74, D10:  INC. 52,53,72,76,78,

  75, : 232436-7, COMPRESSION SPRING 10, 1

  76, : 443153-6, FELT, 1

  77, : 922118-6, HEX. SOCKET HEAD BOLT M4X12, 2

  78, : 213008-7, O RING 22.4, 1

  79, : 347230-5, CHANGE PLATE B, 1

  80, : 234343-0, COMPRESSION SPRING 5, 1

  81, : 347229-0, CHANGE PLATE A, 1

  82, : 346536-8, BEARING RETAINER A, 1

  83, : 144964-9, SPIRAL BEVEL GEAR 11 COMPLETE, 1

  84, : 210024-0, BALL BEARING 608LLU, 1

  85, : 253835-0, FLAT WASHER 8, 1

  86, : 519513-5, ROTOR ASSY, 1

  86, D10: , INC. 83-85,87,

  87, : 210022-4, BALL BEARING 626DDW, 1

  88, : 629340-3, STATOR, 1

  89, : 652069-6, FLAT HEAD SCREW M3X6, 3

  90, : 266490-9, TAPPING SCREW PT 2X6, 3

  91, : 620814-7, CONTROLLER, 1

  92, : 620816-3, ACCELEROMETER CIRCUIT, 1

  092-1, : 620816-3, ACCELEROMETER CIRCUIT, 1

  93, : 813T75-8, CAP LABEL, 1

  093-1, : 818H48-4, CAP LABEL, 1

  94, : 183H92-3, CAP SET, 1

  094A, D10: , INC. 93,95,

  94, : 183J85-2, CAP SET, 1

  094-1, : 183J85-2, CAP SET, 1

  094-1A,D10 : , INC. 93,95,

  094-1, : 140G30-2, CAP COMPLETE, 1

  094-2, : 140G30-2, CAP COMPLETE, 1

  094-2A, D10: , INC. 93,95,

  95, : 213275-4, O RING 18, 1

  • 13218-6, O RING 16, 1

  095-1, :  213218-6, O RING 16, 1

  96, : 632L87-2, CONNECTOR UNIT, 1

  97, : 135963-2, HOOK ASSY, 1

  98, : 912207-5, COUNTERSUNK HEAD SCREW M5X10, 2

  103, : 264002-2, SQUARE NUT M5, 2

  104, : 422257-7, BELLOWS, 1

  105, : 183J30-7, HOUSING SET, 1

  105, C 10: 263005-3, RUBBER PIN 6, 8

  105, D10: , INC. 112,

  105-1, : 183K53-1, HOUSING SET, 1

  105-1, C10: 263005-3, RUBBER PIN 6, 8

  105-1, D10:  , INC. 112,

  106, : 266326-2, TAPPING SCREW 4X18, 9

  107, : 854J30-1, DHR282 NAME PLATE, 1

  108, : 422256-9, RUBBER RING 10, 2

  109, : 257438-2, SLEEVE 10, 1

  110, : 346783-1, PLATE, 4

  111, : 620549-0, LED CIRCUIT, 1

  112, : 183J30-7, HOUSING SET, 1

  112, C10: 263005-3, RUBBER PIN 6, 8

  112, D10:  , INC. 105,

  112-1, :  183K53-1, HOUSING SET, 1

  112-1, C10: 263005-3, RUBBER PIN 6, 8

  112-1, D10: , INC. 105,

  113, : 233598-4, TORSION SPRING 6, 1

  114, : 313226-8, OPENER, 1

  115, : 644809-6, TERMINAL, 2

  116, : 854J37-7, DHR282 SERIAL NO. LABEL, 1

  117, : 266326-2, TAPPING SCREW 4X18, 4

  118, : 183J29-2, HANDLE SET, 1

  118, D10: , INC. 122,

  119, : 453124-5, F/R CHANGE LEVER, 1

  120, : 651366-7, SWITCH C3JW-6B-24, 1

  121, : 632L95-3, LEAD UNIT, 1

  122, : 183J29-2, HANDLE SET, 1

  122, D10: , INC.118,

  123, : 135966-6, TOOL HOLDER ASSY, 1

  123, D 0: , INC. 31-45,

  A01, : 198901-5, WIRELESS UNIT SET, 1

  A01-1, : 199393-1, WIRELESS UNIT SET, 1

  A02, : 194683-7, GREASE VESSEL SET, 1

  A04, : 331886-4, DEPTH GAUGE, 1

  A05, : 443122-7, CLOTH, 1

  A06, : 195173-3, DUSTCUP SET, 1

  A09, : ***DC18RD, DC18RD TWO PORT FAST CHARGER, 1

  A09B, D10: , COMPO-PARTS,

  A10, : 197280-8, BATTERY BL1850B SET, 2

  A10-1, : 197280-8, BATTERY BL1850B SET, 2

  A11, : 839559-8, INNER TRAY, 1

  A12, : 821552-6, CONNECTOR PLASTIC CASE (TYPE4), 1

  A12B, C10: 453974-8, LATCH, 4

  A13B, : 817L53-2, DHR282T2JU INDICATION LABEL, 1

  A13D, : 817W13-0, DHR282PT2J INDICATION LABEL, 1

  A14B, : 817L50-8, DHR282T2JU PLASTIC CASE LABEL, 2

  A14D, : 817W14-8, DHR282PT2J PLASTIC CASE LABEL, 2

  A14-1B, : 817L49-3, DHR282T2JU PLASTIC CASE LABEL, 2

  B01, : 199233-3, HAMMER SERVICE KIT, 1

  B01, C10: 195127-0, OIL VESSEL SET, 2

  B01, D10: , INC. 1,2,4,30,44,45,47,

  E01, :  818S15-5, CLEAR LABEL, 1
